Brother MFC-L2712DW User Manual

3-56
Confidential
9.13.2 Panel PCB ASSY / NFC PCB ASSY / LCD
(1) Disconnect the Key flat cable from the Panel PCB ASSY, and release it from the securing
fixtures.
(2) Release the Hook A to remove the LCD pressure plate from the Panel unit.
(3) Remove the four Taptite cup B M3x10 screws to remove the Shield plate cover from the
Panel unit.
(4) Release the Lock to disconnect the LCD flat cable from the Panel PCB ASSY. Disconnect
the NFC flat cable from the Panel PCB ASSY, and remove the Panel PCB ASSY from the
Panel unit.
(5) Remove the Shield plate base from the Panel unit.
(6) Release the Hook B to remove the NFC PCB ASSY from the Panel unit.
(7) Remove the LCD from the Panel unit.

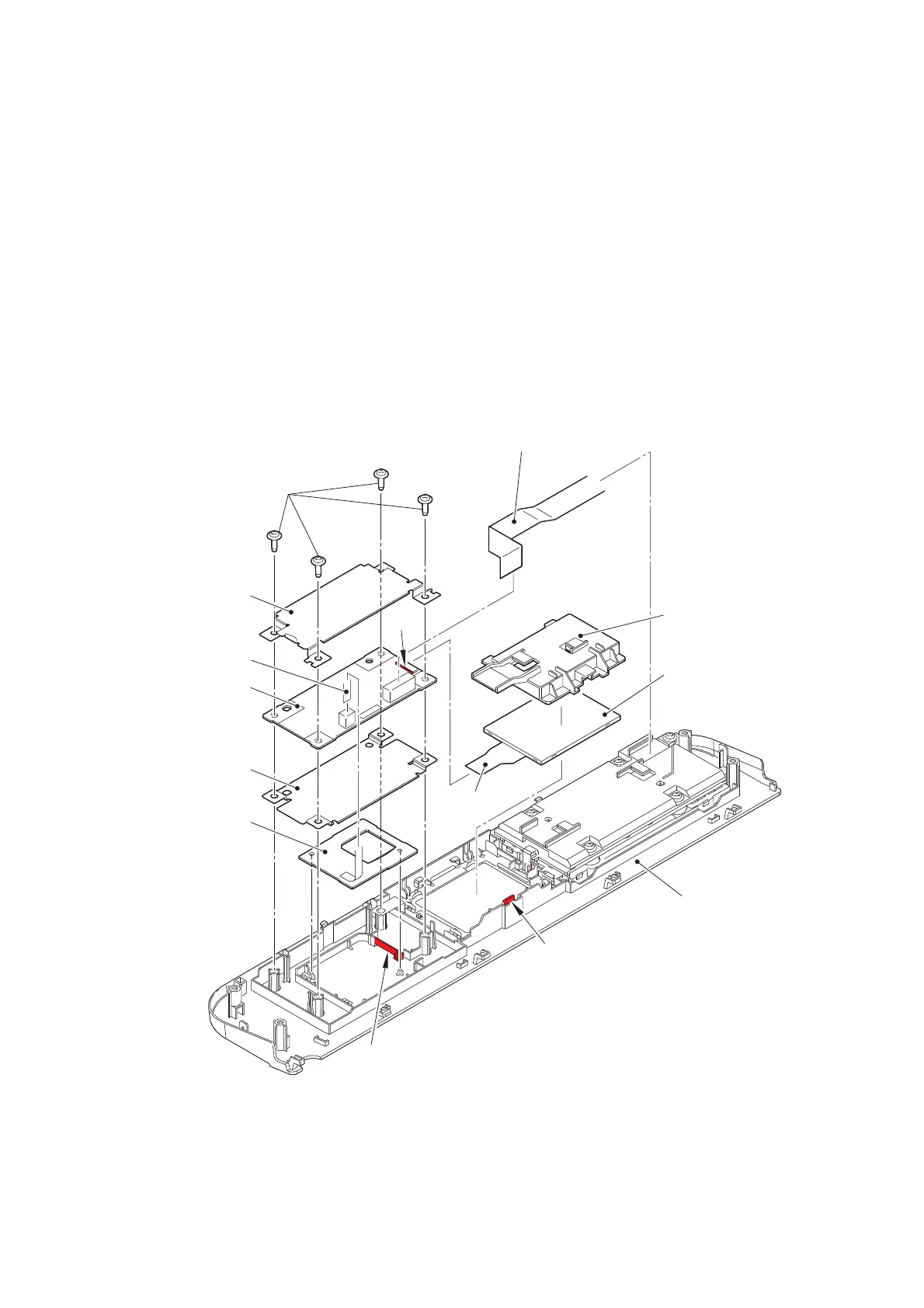

Fig. 3-48
Harness routing: Refer to “5. Panel unit”.
Shield plate cover
Taptite cup B M3x10
Key flat cable
LCD pressure plate
LCD flat cable
Panel PCB ASSY
Shield plate base
Hook A
Lock
Panel unit
LCD
Hook B
NFC PCB ASSY
NFC flat cable

Brother MFC-L2712DW Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Duplex print speed (black, normal quality, A4/US Letter)	15 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
N-in-1 copy function (N=)	2, 4
Copy speed (black, normal quality, A4)	30 cpm
Scan to	E-mail, File, Image, OCR
Grayscale levels	256
Output color depth	24 bit
Scan speed (black)	23.6 ppm
Scan speed (color)	7.5 ppm
Output grayscale depth	8 bit
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Fax speed dialing (max numbers)	200
Digital sender	-
Printing colors	Black
Maximum duty cycle	15000 pages per month
Page description languages	GDI
Display	LCD
Market positioning	Home & office
Display number of lines	2 lines
Paper input type	Paper tray
Total input capacity	250 sheets
Total output capacity	120 sheets
Total number of input trays	1
Auto document feeder (ADF) input capacity	50 sheets
Maximum print size	215 x 355 mm
Paper tray media types	Bond paper, Envelopes, Plain paper, Recycled paper
Paper tray media weight	60 - 163 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
Multi-purpose tray media types	Executive, Letter
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 230 g/m²
Auto Document Feeder (ADF) media weight	64 - 105 g/m²
Sound power level (standby)	30 dB
Sound pressure level (printing)	48 dB
Sound pressure level (quiet mode)	44 dB
USB connector	USB Type-A
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	64-bit WEP, 128-bit WEP, SMTP-AUTH, SNMPv3, SSL/TLS, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP
Ethernet LAN data rates	10, 100 Mbit/s
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, SMTP Client, IPP/IPPS, FTP Server, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print), SNTP Client
Supported network protocols (IPv6)	NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, SMTP Client, FTP Server, SNMPv1/v2c/v3, HTTP/ HTTPS server, TFTP client and server, ICMPv6, SNTP Client, Web Services (Print)
Power consumption (off)	0.03 W
Power consumption (ready)	42 W
Power consumption (sleep)	6.2 W
Power consumption (printing)	440 W
Power consumption (PowerSave)	260 W
Power consumption (average operating)	- W
Energy Star Typical Electricity Consumption (TEC)	1.232 kWh/week
Sustainability certificates	Blue Angel, ENERGY STAR
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Windows operating systems supported	Windows 7, Windows 8
Package depth	517 mm
Package width	580 mm
Package height	434 mm
Package weight	14900 g
Included cartridge capacity (black)	1 pages

Weight and Dimensions

Depth	398.5 mm
Width	410 mm
Height	318.5 mm
