T-8421C, 8422C, 8452C, 8722C, 8752C
3. INSTALLATION
14
<200V system>

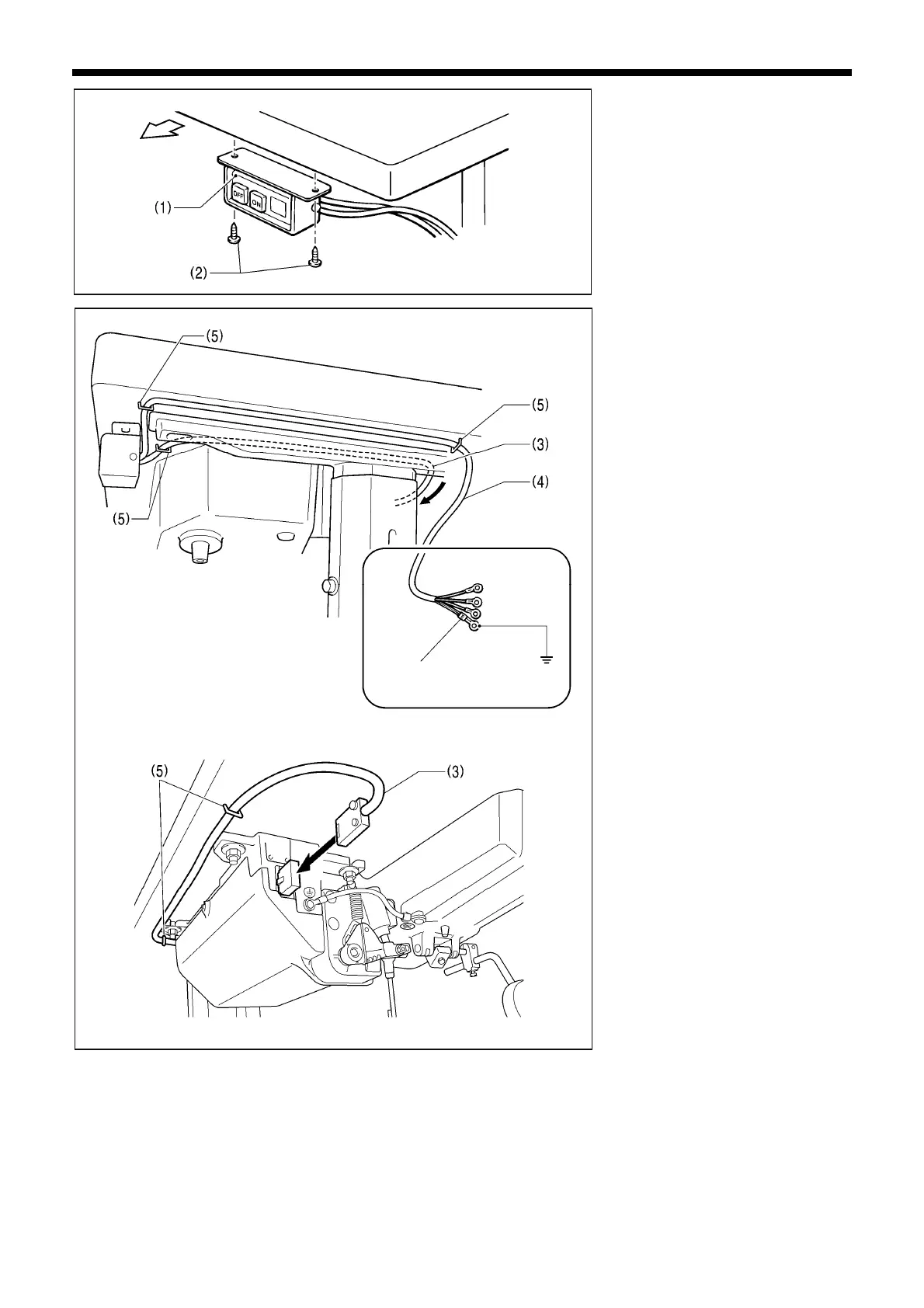

(1) Power switch
(2) Screws [2 pcs]
(3) 3-pin power supply connector
(4) Power cord
(5) Staples [5 pcs.]
1. Attach an appropriate plug to the
power cord (4). (The green and
yellow wire is the ground wire.)
2. Insert the power plug into a
properly-grounded electrical outlet.
NOTE:
Take care when tapping in the
staples (5) to make sure that they do
not pierce the cords.
Do not use extension cords,
otherwise machine operation
problems may result.
4145M
Green and yellow wire
(ground wire)
Operator
2178B
2177B
To Next Page
