Brother TC-32B User Manual

Chapter 8 Automatic work measurement TC-32B
2004/01/30 8 - 12 eTCOMNCPR8-1.doc
8

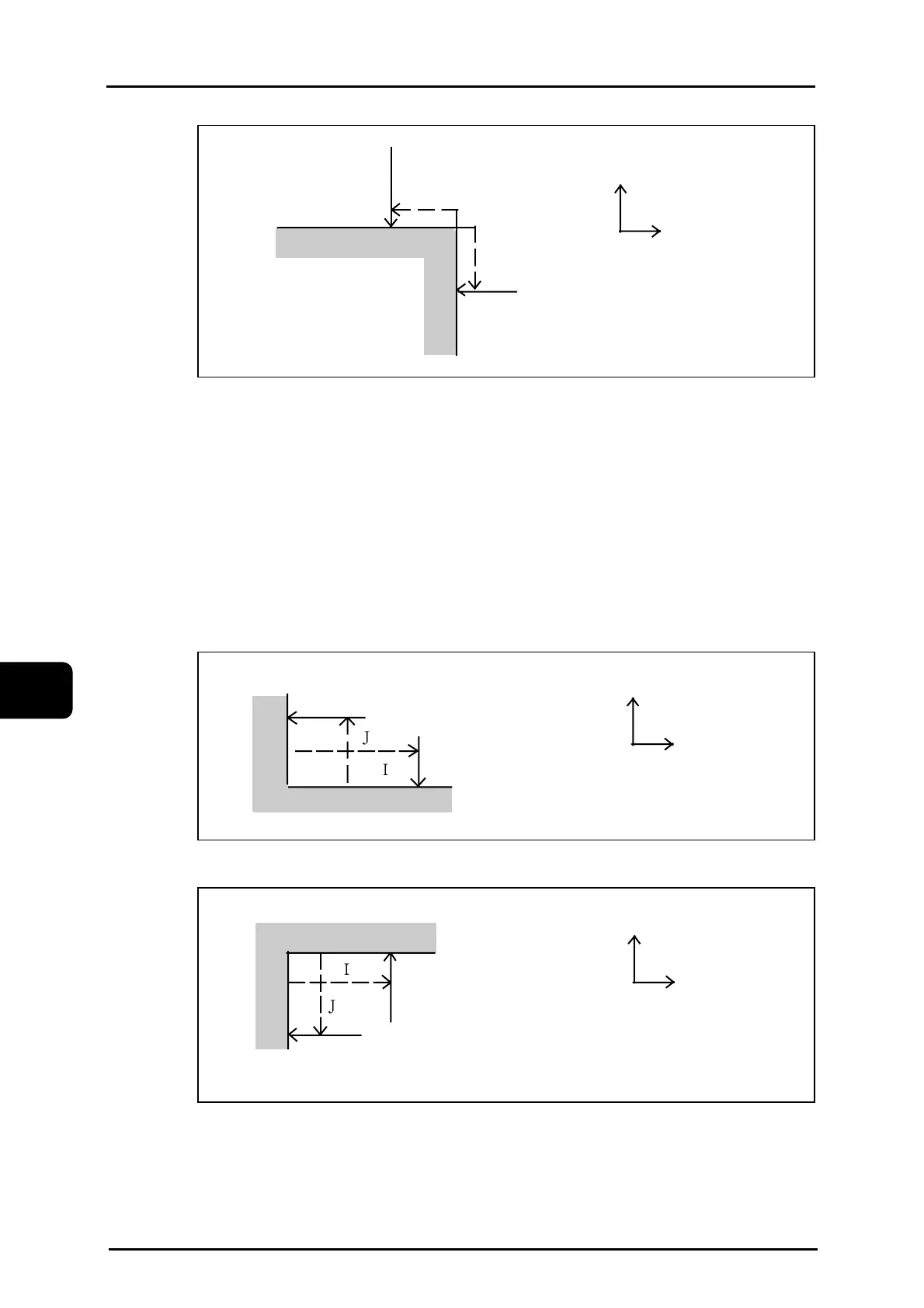

d) I<0, J<0
eNCPR9.14.ai
Measurement pattern
1. The spindle is oriented. The probe moves to the first measurement start point of the X and
Y axes.
2. The probe moves to the Z axis measurement height.
3. The first measurement is carried out (Position "J").
4. Measured by position "L" when "L" is commanded
5. The spindle is oriented. The probe moves to the second measurement start point of the X
and Y axes.
6. The second measurement is carried out.
7. Measured by position "K" when "K" is commanded
8. The probe moves to the Z axis return point.
a) I<0, J<0
eNCPR9.15.ai
b) I<0, J>0
eNCPR9.16.ai
I
J
1ST
2ND
1ST ... spi ndl e180° , i n the -X di recti
2ND... spindle180°, in the-Y directi
o
+Y
+X
1ST
2ND
1ST ... spindle 180° , in the -X directi
2ND... spi ndle 180° , in the -Y directi
+Y
+
X
+
Y
+X
1ST
2ND
1ST ... spindle 180° , in the -X directi
2N D ... spi ndl e 0° , i n t he +Y di recti o
n
