Standard Assembly (continued)
20-1
FOLDING DECK MODELS

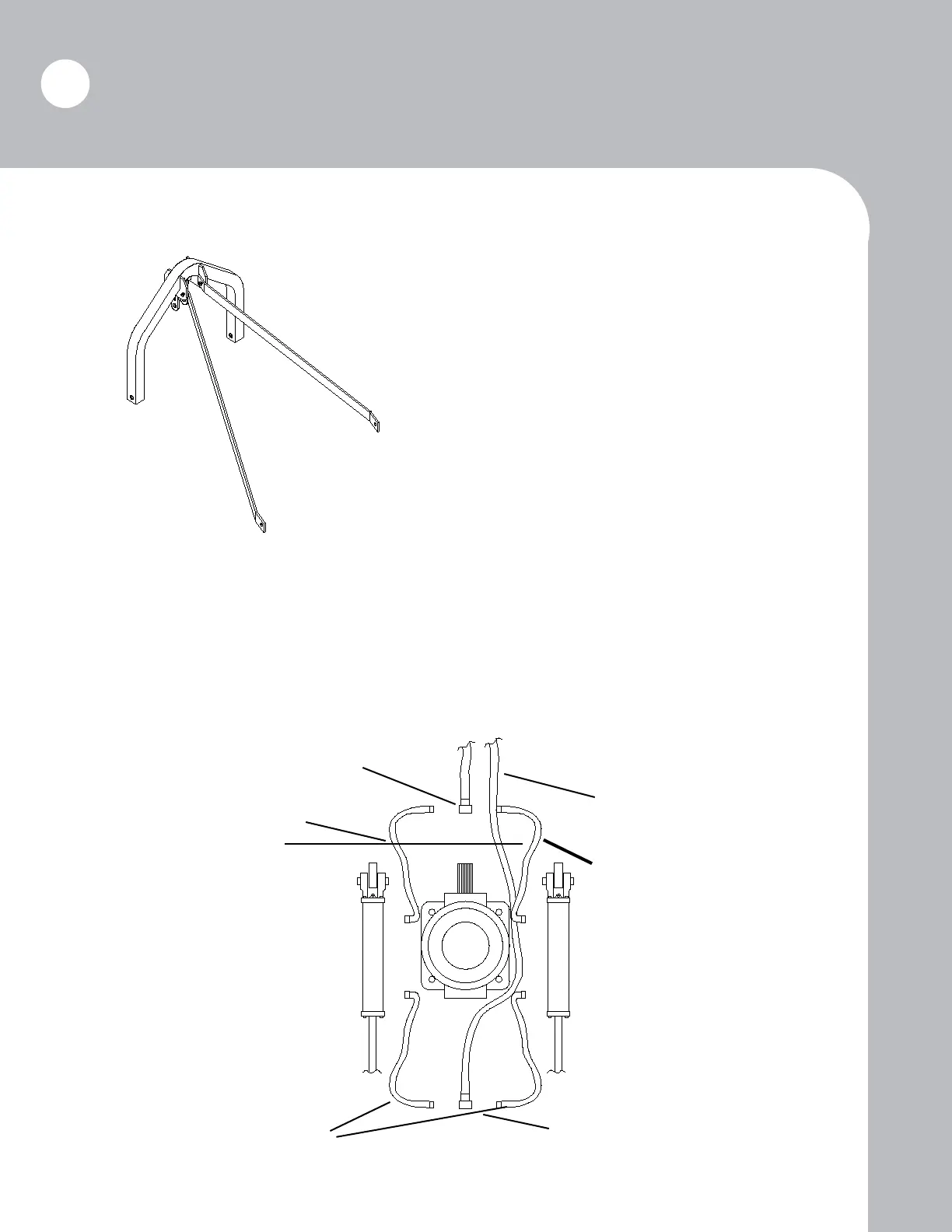

HYDRAULIC HOSE DIAGRAM
Route Hoses to Inside of A-Frame
Brace & Secure With Nylon Pull Ties
4 FPX Tee
Into Nipple
14” Hose Assembly Into
Tee & Cylinder End
T
14” Hose Assembly Into
Tee & Cylinder End
4 FPX Tee
Into Nipple
Longest Hose Assembly
To Rear Tee
Note: Hydraulic Hoses
MUST be under input shaft!
