37

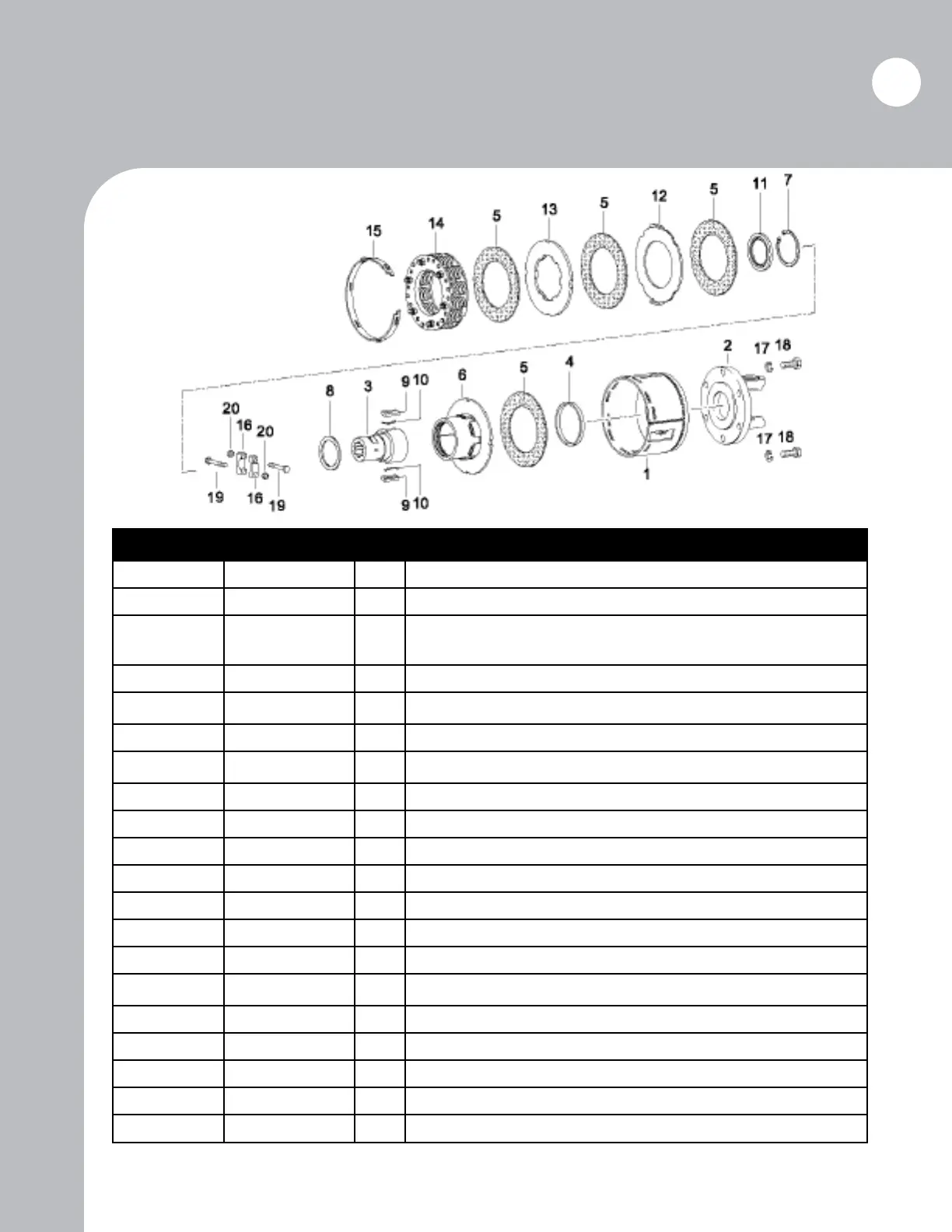

SLIP CLUTCH ASSEMBLY DIAGRAM
Ref. No. Part No. Qty. Description
1 236-2099 1 Clutch Housing
2 236-2010 1 Yoke (Bolt On)
3 T5-W30
T5-W43
1
1
Hub, 1 3/4” x 6 Spline 540 RPM
Hub, 1 3/4” x 20 Spline 1000 RPM
4 T5-W19 1 Centering Ring
5 T5-W20 4 Friction Lining
6 T5-W21 1 Drive Plate
7 T5-W22 1 Lock Ring
8 T5-W23 1 Supporting Ring
9 T5-W25 2 Key
10 T5-W24 2 Leaf Spring
11 T5-W32 1 Sealing Ring
12 T5-W26 1 Drive Plate (Outer)
13 T5-W27 1 Drive Plate (Inner)
14 T5-W49 1 Spring Pack
15 T5-W29 1 Setting Ring
16 T5-W33 2 Clamp Bridge
17 MLW12Z 6 Lock Washer M12
18 MCS12C30Z88 6 M12 x 1.75 x 30 x 8.8GR Bolt
19 T5-W35 2 Bolt M16 x 110mm for T5-W33
20 T5-W34 2 M16 Nut for T5-W33
To Next Page
