122

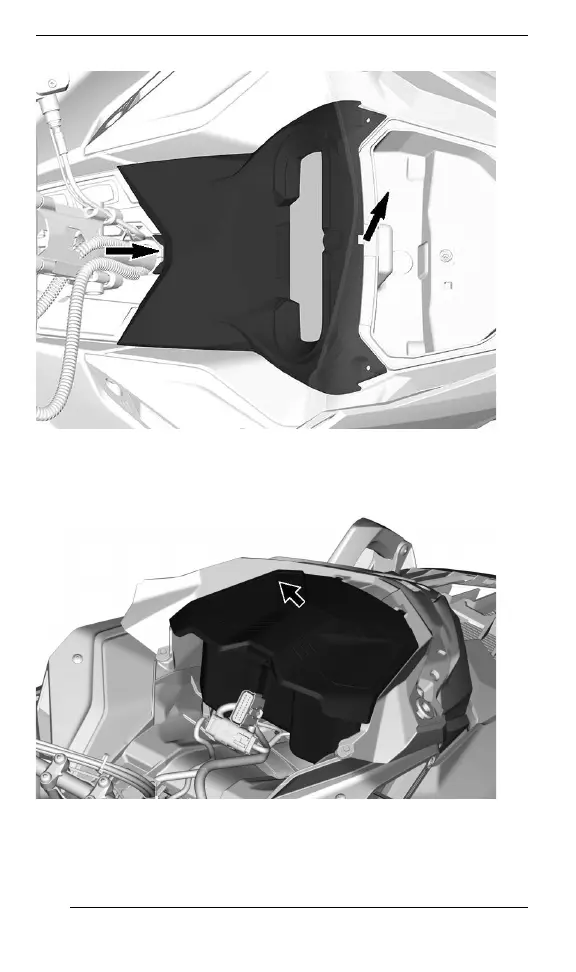

5. Disconnect gauge connector and remove support .
6. Lift storage compartement and disconnect 12V power outlet con-
nectors before removing the storage compartment (if equipped).
7. Disconnect the headlight and MAPTS (2– stroke engine)
connectors.
BODY AND SEAT
