141

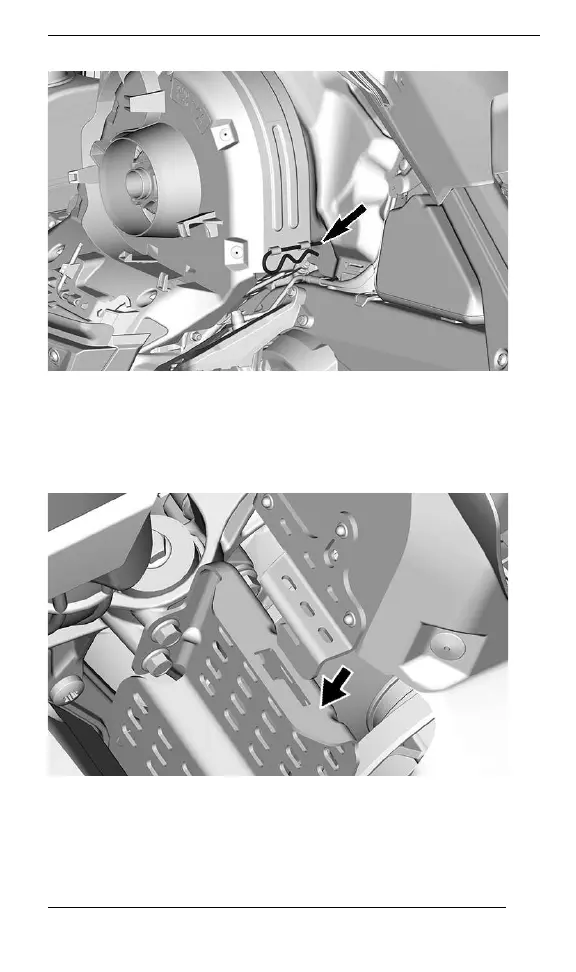

TTYYPPIICCAALL
Lift rear portion of guard then release from front tab.
IInnssttaalllliinngg tthhee DDrriivvee BBeelltt GGuuaarrdd
Insert belt guard tab in front support slot.
Push drive belt guard toward engine then toward front of vehicle.
EQUIPMENT
