BRP Lynx E-TEC Series - Page 210

208

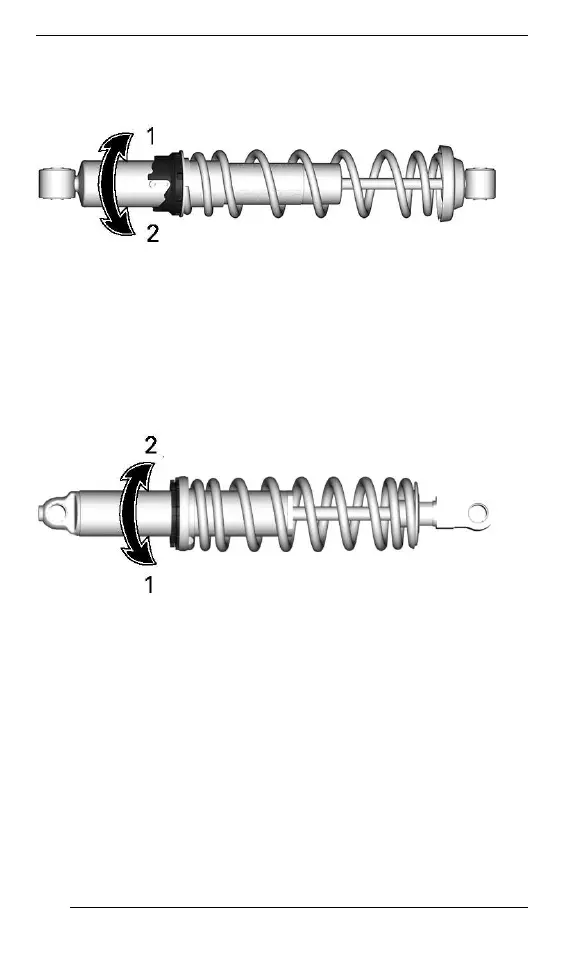

Using the suspension adjustment tool provided in the tool kit, turn the
cam to increase or decrease the spring preload.
1. Increase preload
2. Decrease preload
RRiinngg TTyyppee AAddjjuusstteerr
Using the suspension adjustment tool provided in the tool kit, unscrew
the lock ring and turn the adjustment ring to increase or decrease the
spring preload.
Tighten the lock ring when the adjustment is done.
1. Increase preload
2. Decrease preload
TUNE YOUR RIDE
