Better deep snow performance and
handling

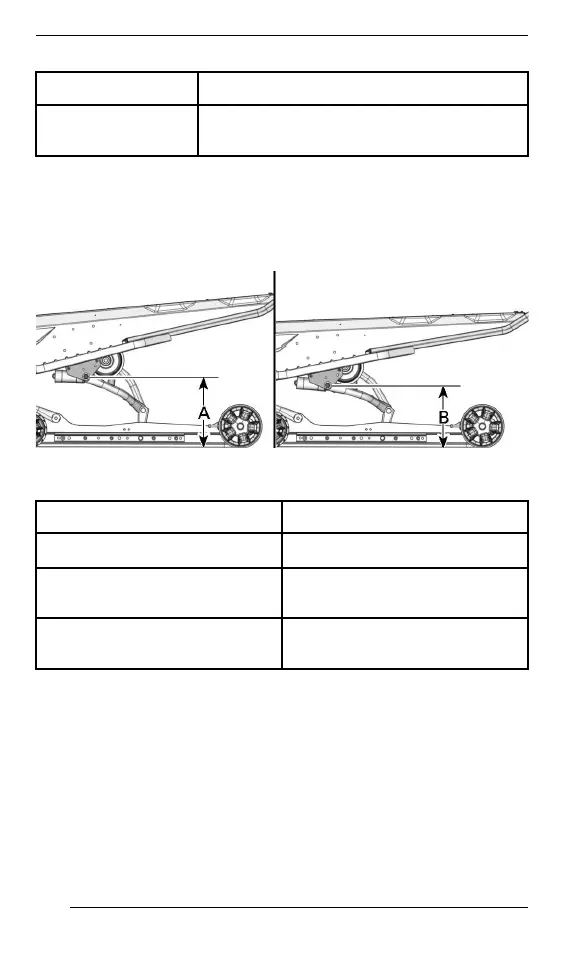

Refer to the following to determine if preload is correct.
– A = Suspension fully extended
– B = Suspension has collapsed with operator, passenger(s) and
load added
– C = Distance between dimension “A” and “B”, see table below
TTYYPPIICCAALL -- DDIISSTTAANNCCEE BBEETTWWEEEENN GGRROOUUNNDD AANNDD UUPPPPEERR RREEAARR
AARRMM PPIIVVOOTT
CC WWhhaatt ttoo ddoo
90 to 100 mm (3.6 to 4 in) No adjustment required
More than
100 mm (4 in)
Adjusted too soft. Increase
preload
Less than
90 mm (3.6 in)
Adjusted too firm. Decrease
preload
NNOOTTEE::
If the specification is unattainable with the original springs, visit an au-
thorized BRP snowmobile dealer for other available springs.
Using the suspension adjustment tool provided in the tool kit, unscrew
the lock ring and turn the adjustment ring to increase or decrease the
spring preload.
Tighten the lock ring when the adjustment is done.
TUNE YOUR RIDE
