4. Reinstall check plug and tighten to specification.
ttiigghhtteenniinngg ttoorrqquuee

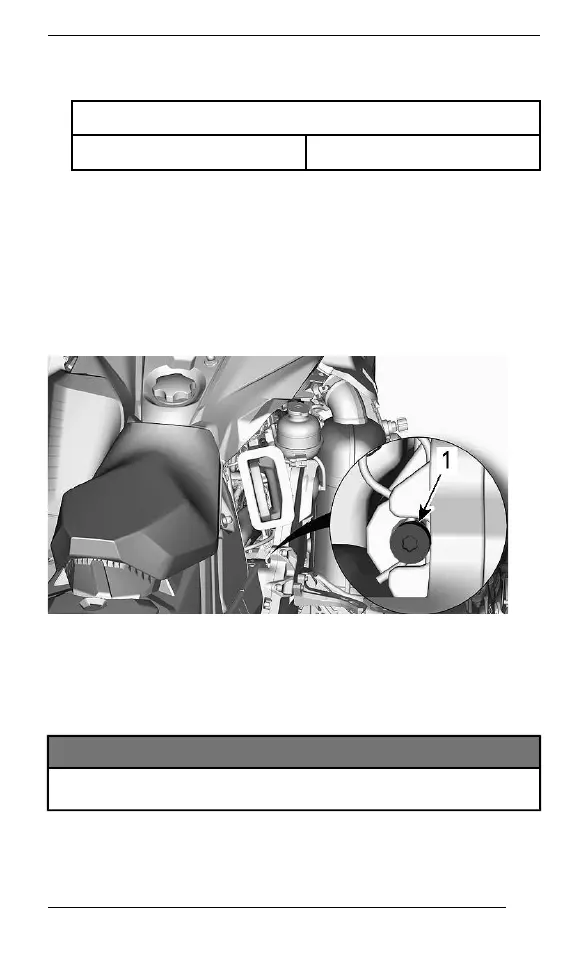

Oil level check plug 6 ± 1 Nm (53 ± 9 lbf-in)
DDrriivvee CChhaaiinn
AAcccceessss ttoo CChhaaiinnccaassee
Open RH side panel, refer to
Equipment
.
DDrriivvee CChhaaiinn AAddjjuussttmmeenntt
Using the Torx end of the driven pulley expander, GENTLY turn ten-
sioner clockwise to eliminate the play.
TTYYPPIICCAALL
Do not force the tensioner in.
NNOOTTEE::
Do not remove the hair cotter pin.
NNOOTTIICCEE
OOvveerrttiigghhtteenniinngg tthhee ddrriivvee cchhaaiinn ccoouulldd rreessuulltt iinn sseevveerree ddaammaaggee ttoo
tthhee cchhaaiinnccaassee ccoommppoonneennttss..
