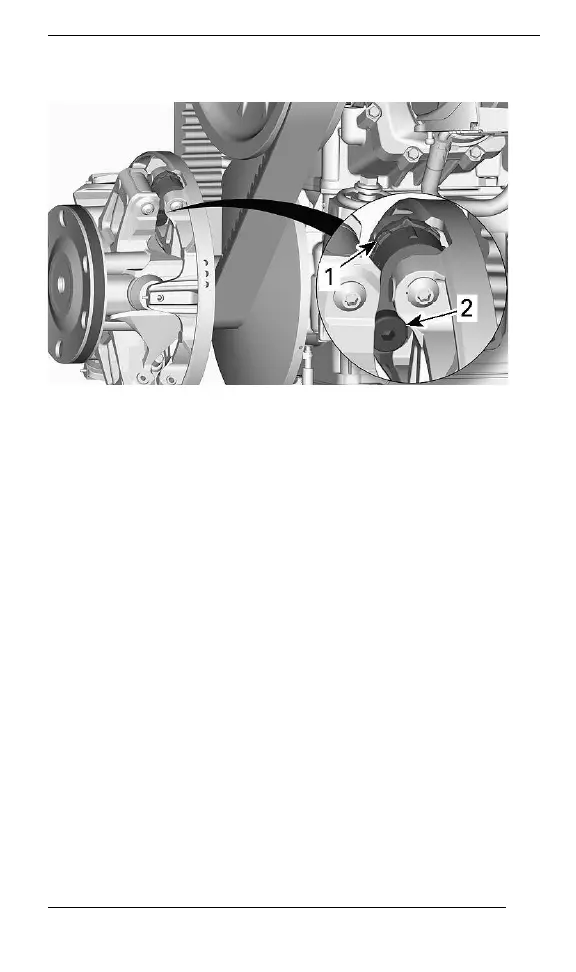

2. Locate the cam and the pivot screw on the drive pulley.
TTYYPPIICCAALL
1. Cam
2. Pivot screw
The cam position is identified as follows:
– Positions 1, 2, 4 and 5 are numbered.
– Position 3 (middle) is identified by a notch.
– There are notches on each side of the cam used as pointers.
