BRP-Rotax
INSTALLATION MANUAL
ELECTRICAL INTERFACES – 916 I TYPE C24
Harness interface
connector A
916 i TYPE C24
The HIC A connector allows powering ECU Lane A and Fuel Pump A. interfaces to Indica-
tion elements are described in Chapter 77-00-00.

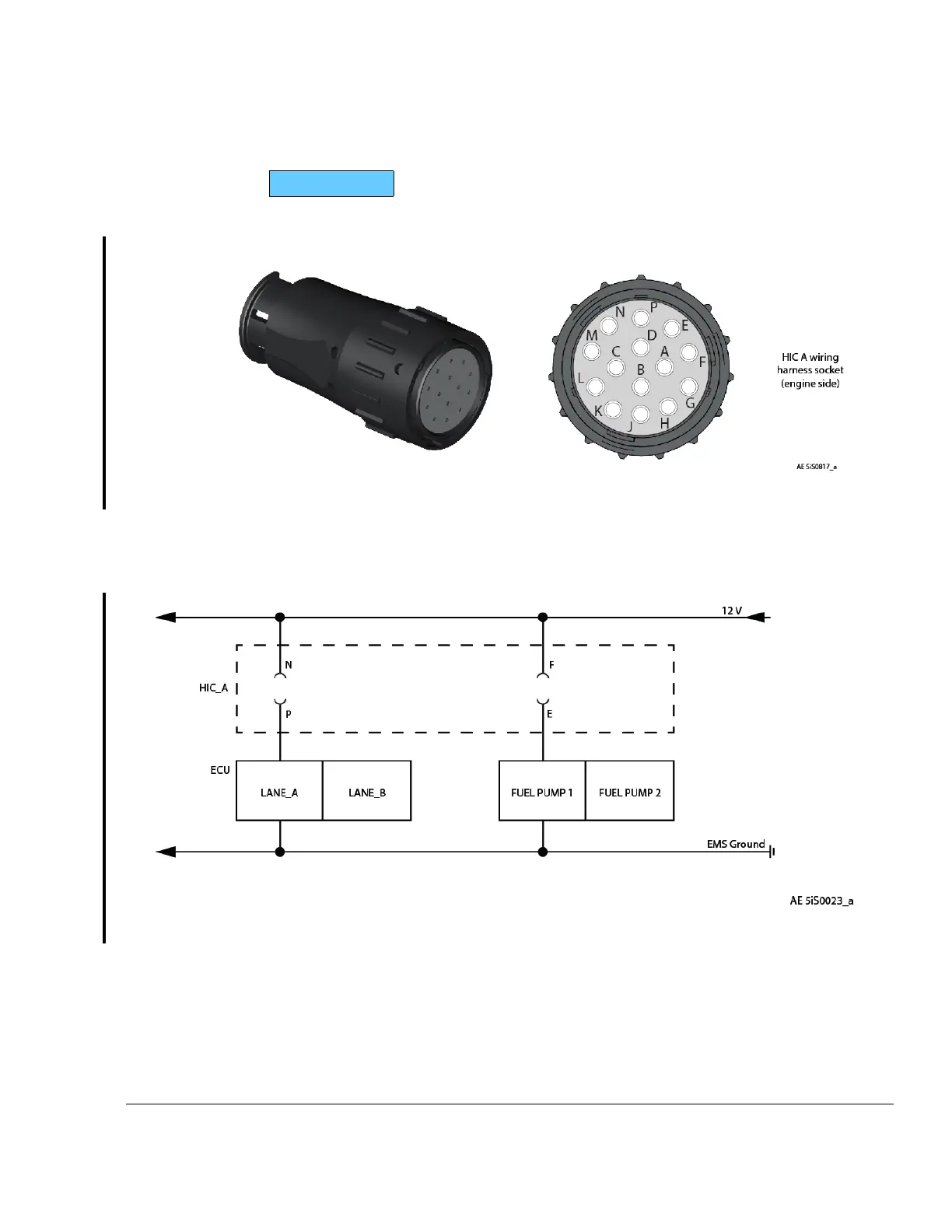

Figure 9.9: HIC A Connector
In case the EMS is powered by an external power source or by one of the internal
generators:
• A connection between Terminal N and Terminal P will power ECU Lane A
Figure 9.10: HIC A connector –Engine controls
Effectivity: 916 i A / C24
Edition 0/Rev. 1
76–00–00
Page 11
December 01 2023
