BRP ROTAX 916 i A Series Installation Manual

BRP-Rotax
INSTALLATION MANUAL
ELECTRICAL INTERFACES
Harness Interface
Connector A
The HIC Connector A is equipped with a Maintenance CAN interface, a Display CAN inter-
face and terminals which can be used to actuate a warning lamp indicating the current sta-
tus of the ECU Lane A. Interfaces to control elements are described in Chapter 76-00-00.

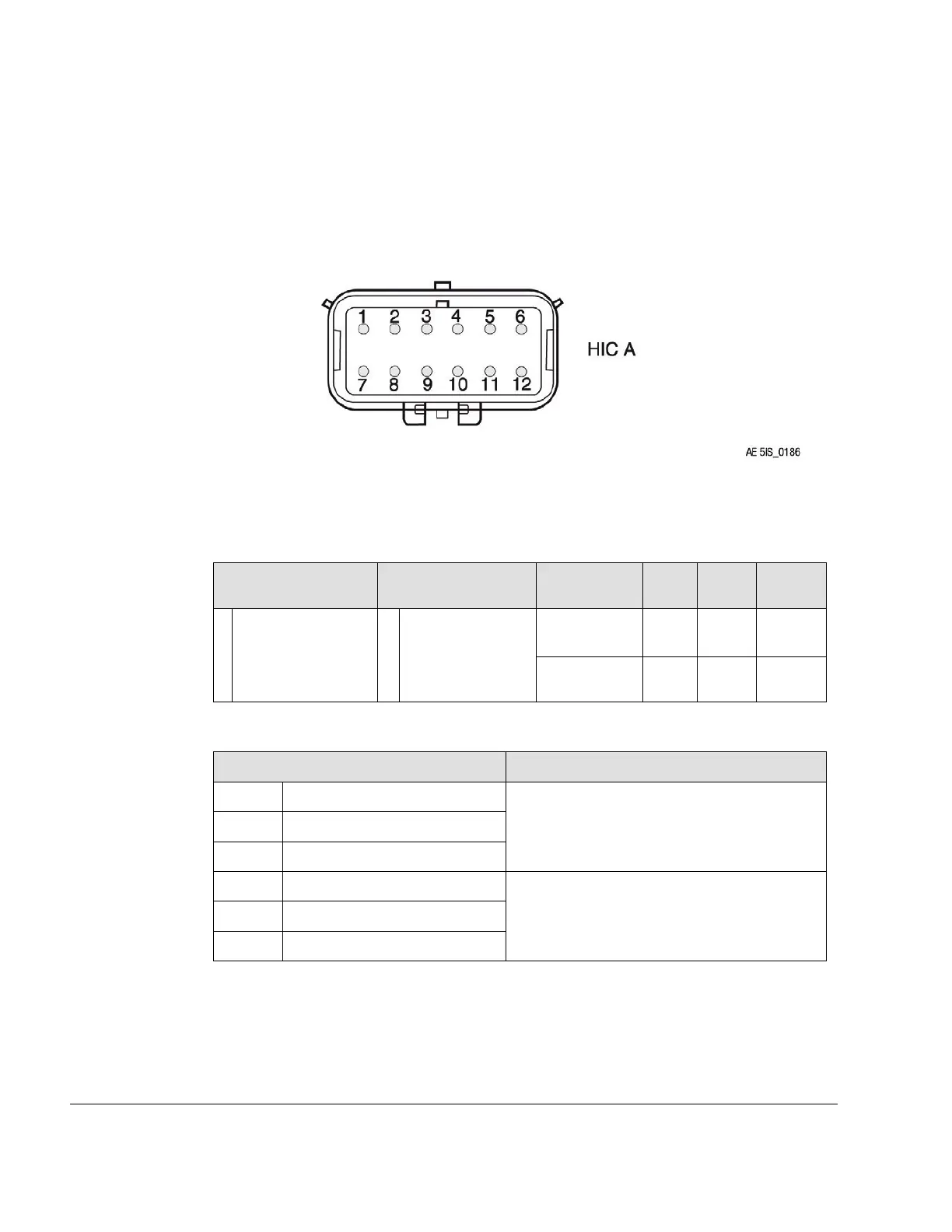

Figure 10.4: HIC A Connector
Warning Lamp
Terminal (Supply) Terminal (Ground) Interface
Parameter
Min. Max. Nomi-
nal
2
SUPP_WARN_
LAMP_A
8
WARN_LAMP_A Nominal
voltage
12 V
Nominal
current
120
mA
CAN Interfaces
Terminal
Specification
4
CAN_GND_1_A Display CAN Lane A
5
CAN_LOW_1_A
6 CAN_HIGH_1_A
10
CAN_GND_2_A Maintenance CAN Lane A
11
CAN_LOW_2_A
12 CAN_HIGH_2_A
Connector: HIC Connector A (included in the engines scope of delivery).
The HIC Connectors must be mounted according to the procedure prescribed in Chapter
76-00-00.
The Display CAN is based on the CAN Aerospace protocol. For detailed interface descrip-
tion contact an authorized ROTAX® Distributor or its independent Service Center.
77–00–00
Page 6
December 01 2023
Effectivity: 916 i A / C24
Edition 0/Rev. 1
