BRP-Rotax
INSTALLATION MANUAL
SYSTEM DESCRIPTION
For a detailed System description refer to the latest issue of the Operators Manual (OM).
SYSTEM LIMITATIONS
Operating limits Refer to latest issue of the Operators Manual (OM).
m WARNING
Non-compliance can result in serious injuries or death!
The lubrication system must be designed such that the permissible operating tempera-
tures and maximum values are not exceeded.
CRANKCASE PRESSURE MEASUREMENT
Measurement of the mean crankcase pressure at full throttle, this ensures correct oil re-
turn from crankcase (blow-by gas).

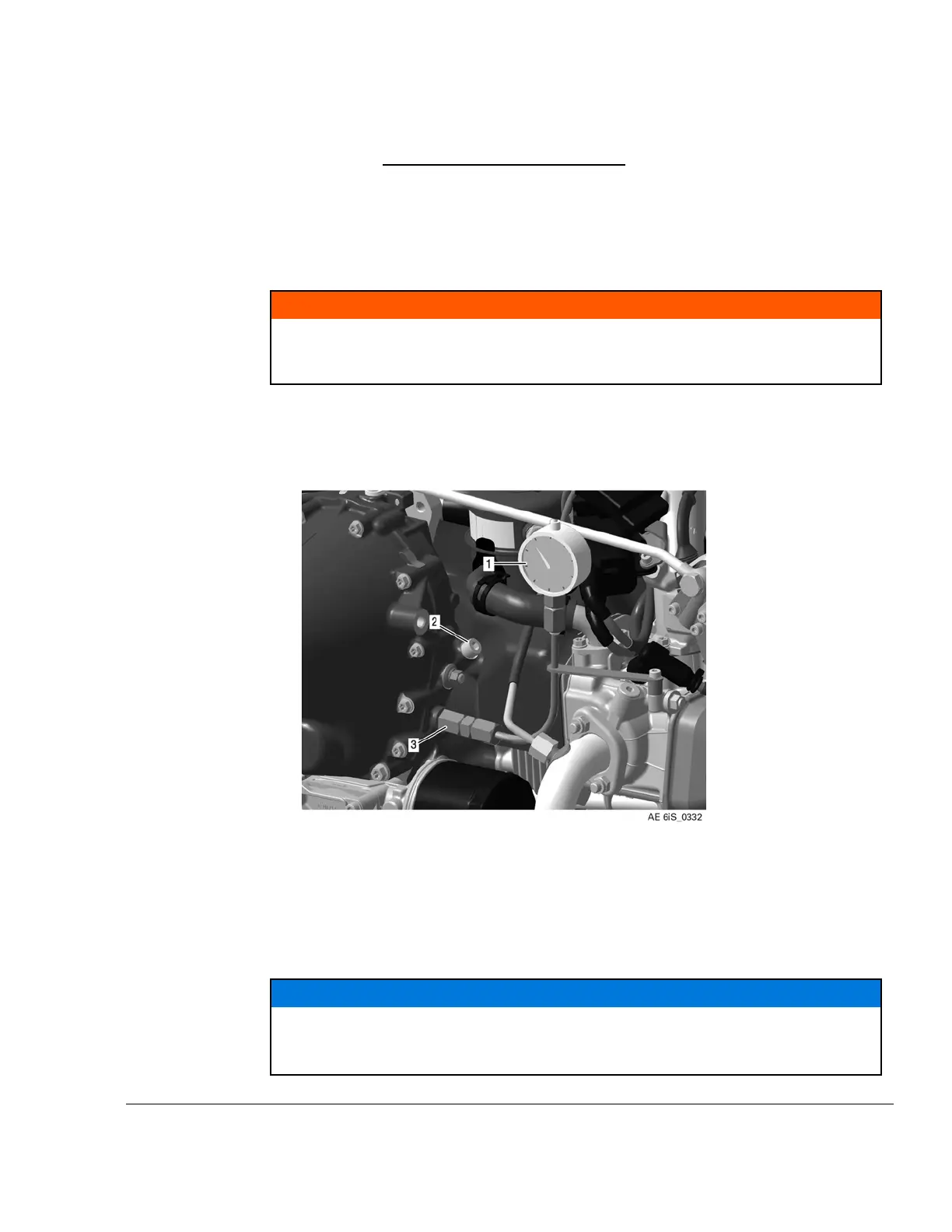

Figure 12.2: Measurement of crankcase pressure
1 Pressure indicator 2
Allen screw M8x20 (position for crank-
shaft locking screw
3
Magnetic plug (position for adapter)
NOTICE
Leakage may occur!
Always use a new sealing ring with Allen screw M8 (position for crankshaft locking
screw).
Effectivity: 916 i A / C24
Edition 0/Rev. 1
79–00–00
Page 3
December 01 2023
