142

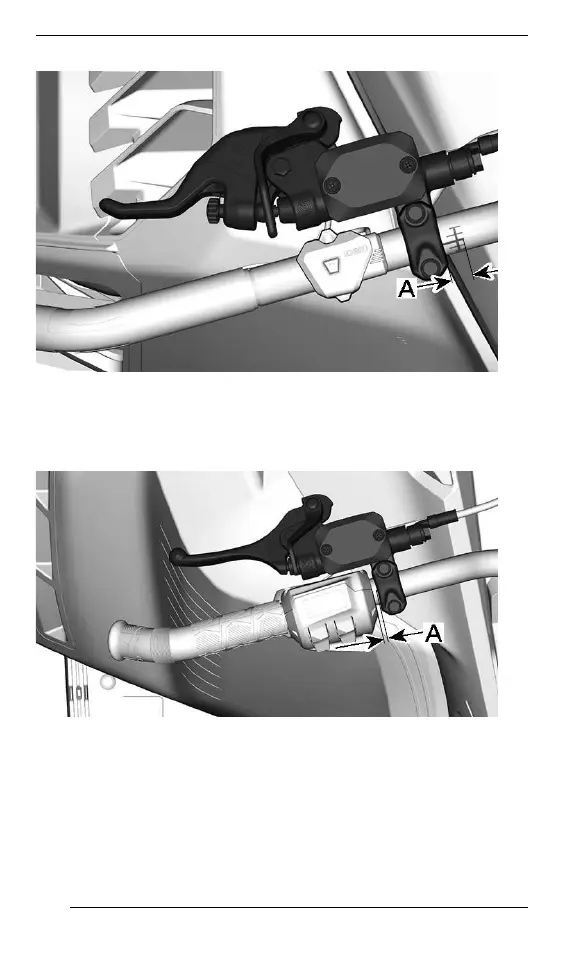

A. 0 to 9 mm (0 to 0.354 in) between the start of the handlebar mark
and side of the brake lever
MMooddeellss wwiitthh aalluummiinnuumm hhaannddlleebbaarr aanndd wwiitthh mmuullttiiffuunnccttiioonn
sswwiittcchh
A. 0 to 15 mm (0 to 0.590 in) between the side of the multifunction
switch and the side of the brake lever
3. With the operator on the driver seat, put the brake lever in the de-
sired position.
4. Tighten the two bolts to specification.
PRIMARY CONTROLS
