BRP ski-doo E-TEC Series - Page 180

176
5. Disconnect the gauge connector and remove the support.

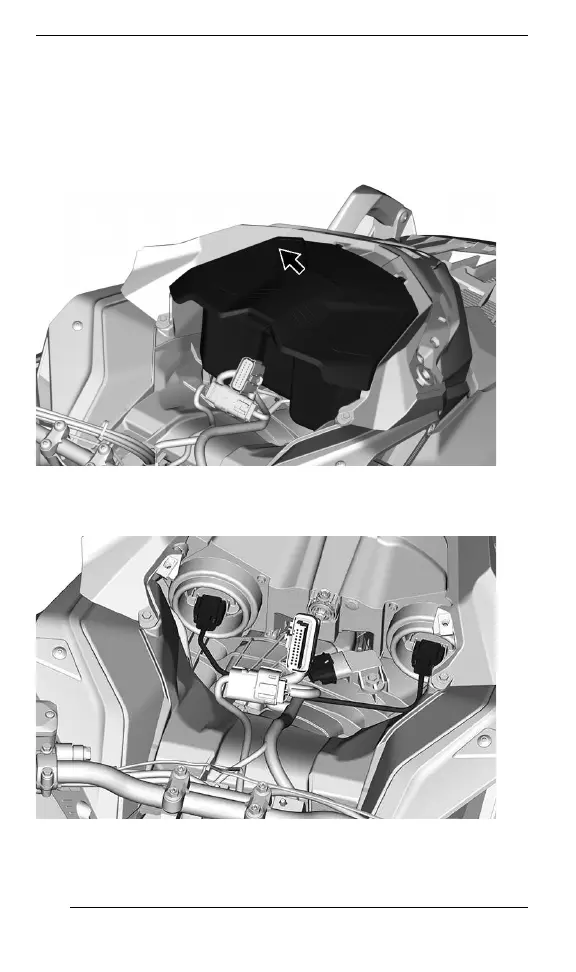

6. Lift the storage compartment and disconnect the 12V power outlet
connectors, if equipped, before removing the storage
compartment.
TTYYPPIICCAALL
7. Disconnect the headlight and the MAPTS (2-stroke) connectors.
TTYYPPIICCAALL
BODY AND SEAT
