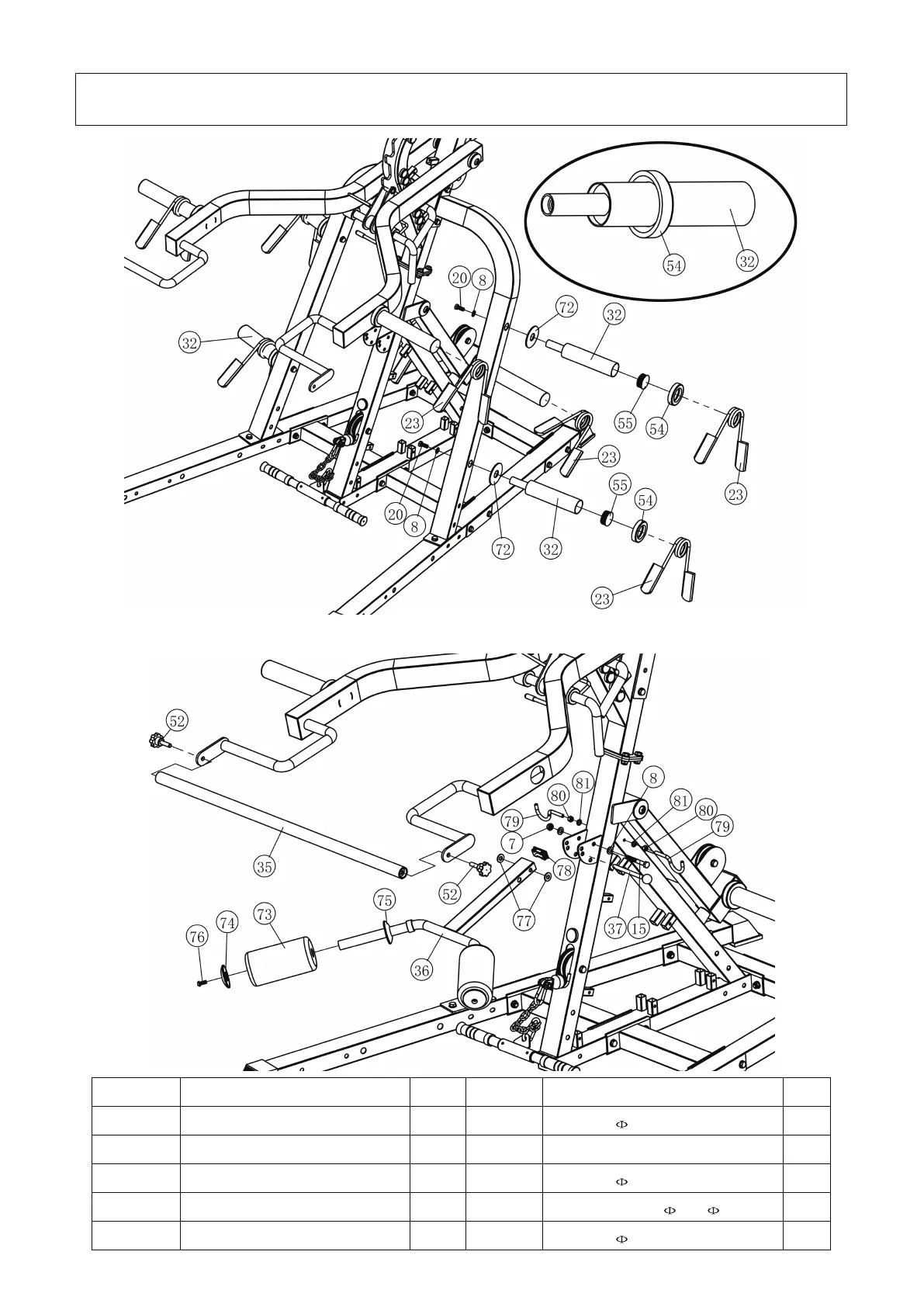

Assembly
Step 6
Step 7
Key No. Description Qty. Key No. Description Qty.
7 Nylon Lock Nut M10 8 Washer 10 6
15 Hex Bolt M10*75 1 20 Hex Bolt M10*25 4
37 Ball Head Pin 1 72 Washer 78*3 4
76 Hex Socket Head Bolt M8*20 2 77 Nylon Washer 24* 10*2 2
80 Nut M8 2 81 Washer 8 2
To Next Page
