Assembly Instruction
Note:
1. Washer should be placed on both ends of all bolts (against the head of the bolt and against
the nut) unless otherwise specified in these instructions.
2. Hand tighten all bolts on initial assembly and finally tighten with the wrench once the entire
structure is erect.
3.
Water or soap makes the assembly of foam easier.
4. Some parts may be pre-assembled at the factory.
5. Assembly requires the assistance of another person.

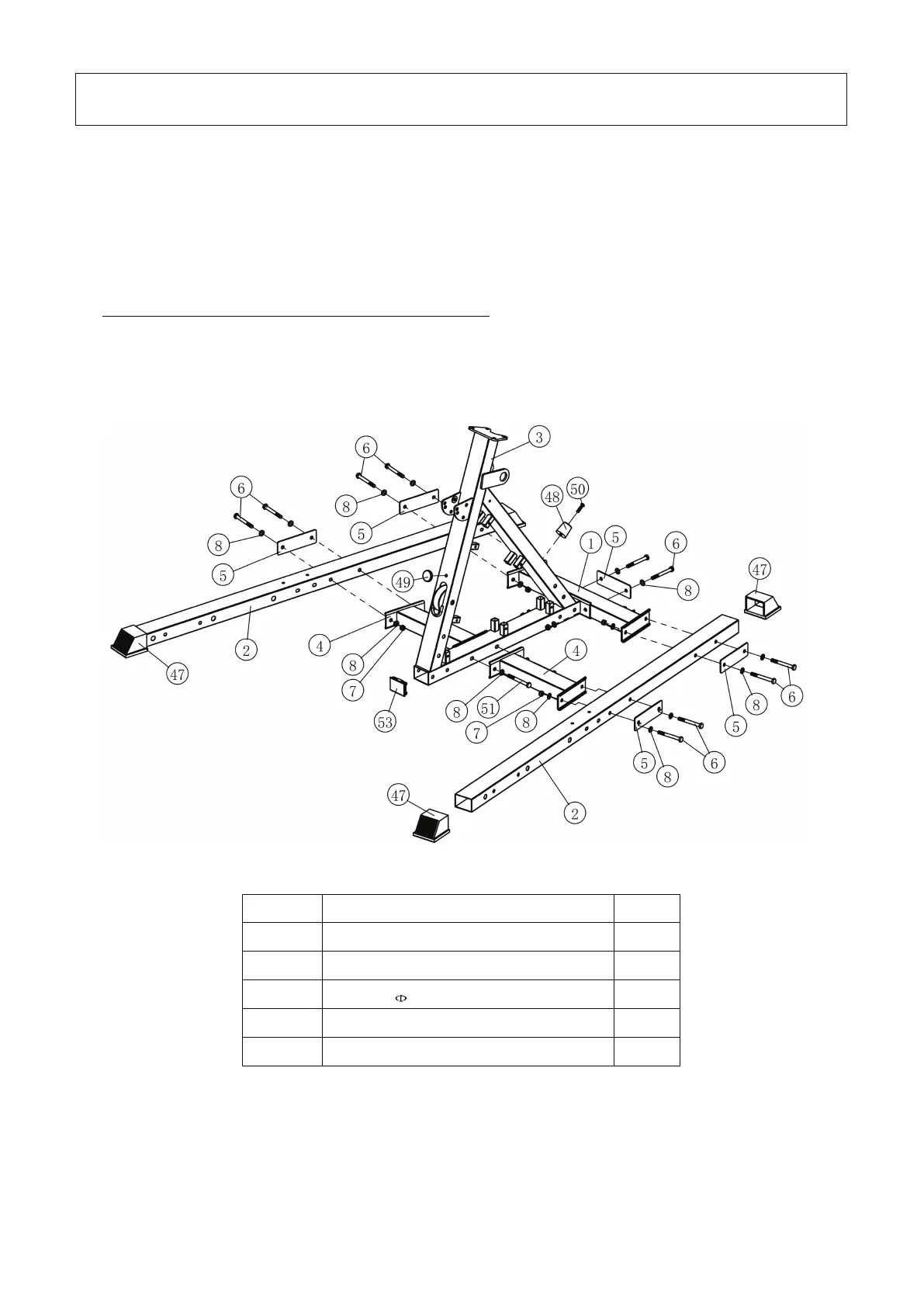

Step 1
Key No. Description Qty.
6 Hex Bolt M10*90 10
7 Nylon Lock Nut M10 12
8 Washer 10 24
50 Hex Socket Head Bolt M8*30 1
51 Hex Bolt M10*95 2
To Next Page
