Bryant EVOLUTION 180B - DIMENSIONS - 180 BNA 3 TON TROPHY (ENGLISH)

10

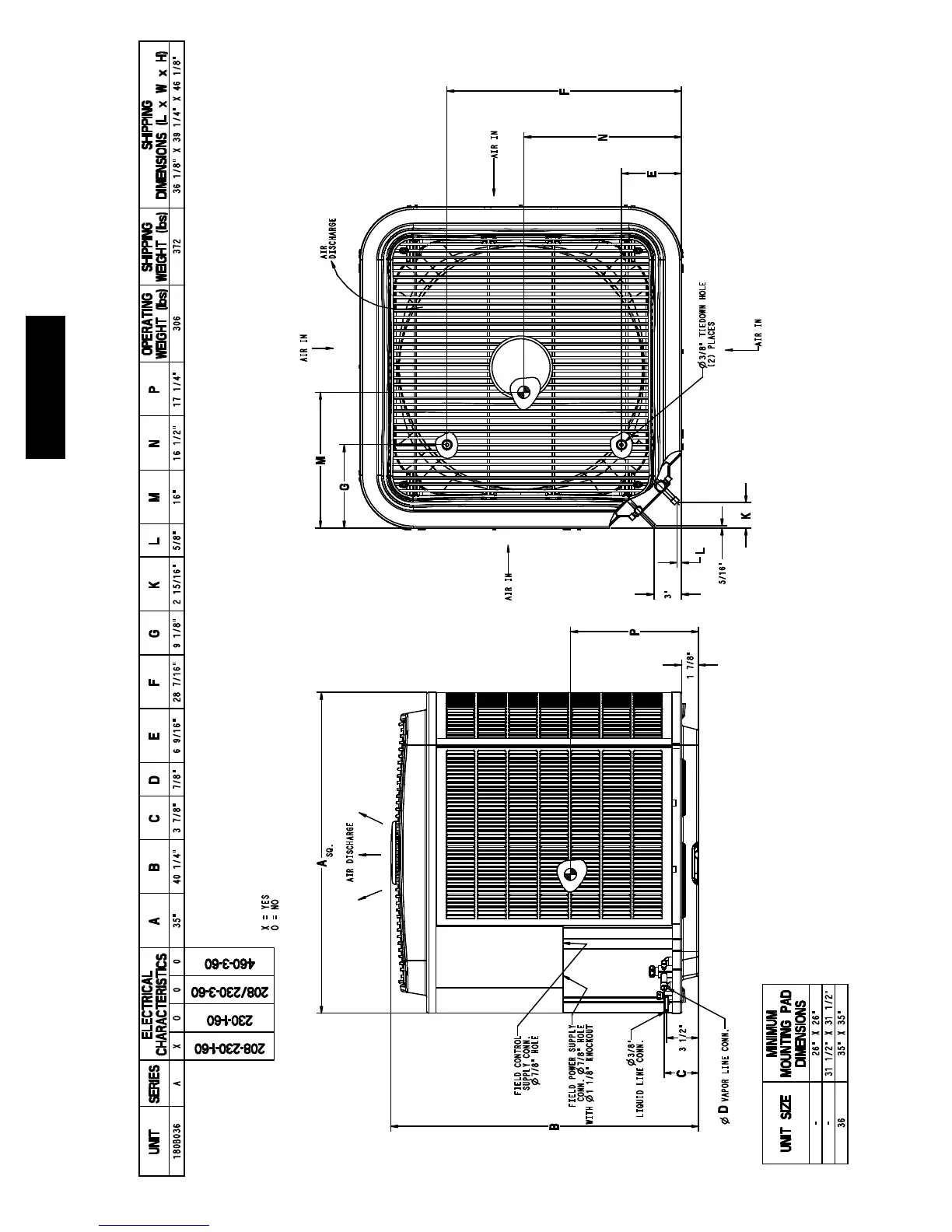

DIMENSIONS -- 180BNA 3 TON TROPHY (ENGLISH)
208-230-1-60
230-1-60
208/230-3-60
460-3-60
UNIT SIZE
MINIMUM
MOUNTING PAD
DIMENSIONS
- 26" X 26" - 31 1/2" X 31 1/2"
36 35" X 35"
UNIT SERIES
ELECTRICAL
CHARACTERISTICS
ABCDEFGKLMNP
OPERATING
WEIGHT (lbs)
SHIPPING
WEIGHT (lbs)
SHIPPING
DIMENSIONS (L x W x H)
180B036 A X O 0 0 35" 40 1/4" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 16" 16 1/2" 17 1/4" 306 372 36 1/8" X 39 1/4" X 46 1/8"
X = YES O=NO
A
B
C
31/2"
17/8"
P
E
F
N
G
M
L
3"
5/16"
K
SQ.
FIELD CONTROL
SUPPLY CONN.
7/8" HOLE
FIELD POWER SUPPLY
CONN. 7/8" HOLE
WITH 1 1/8" KNOCKOUT
3/8"
LIQUID LINE CONN.
VAPOR LINE CONN.
D
AIR DISCHARGE
3/8" TIEDOWN HOLE
(2) PLACES
AIR IN
AIR IN
AIR IN
AIR IN
AIR DISCHARGE
187B / 180B
