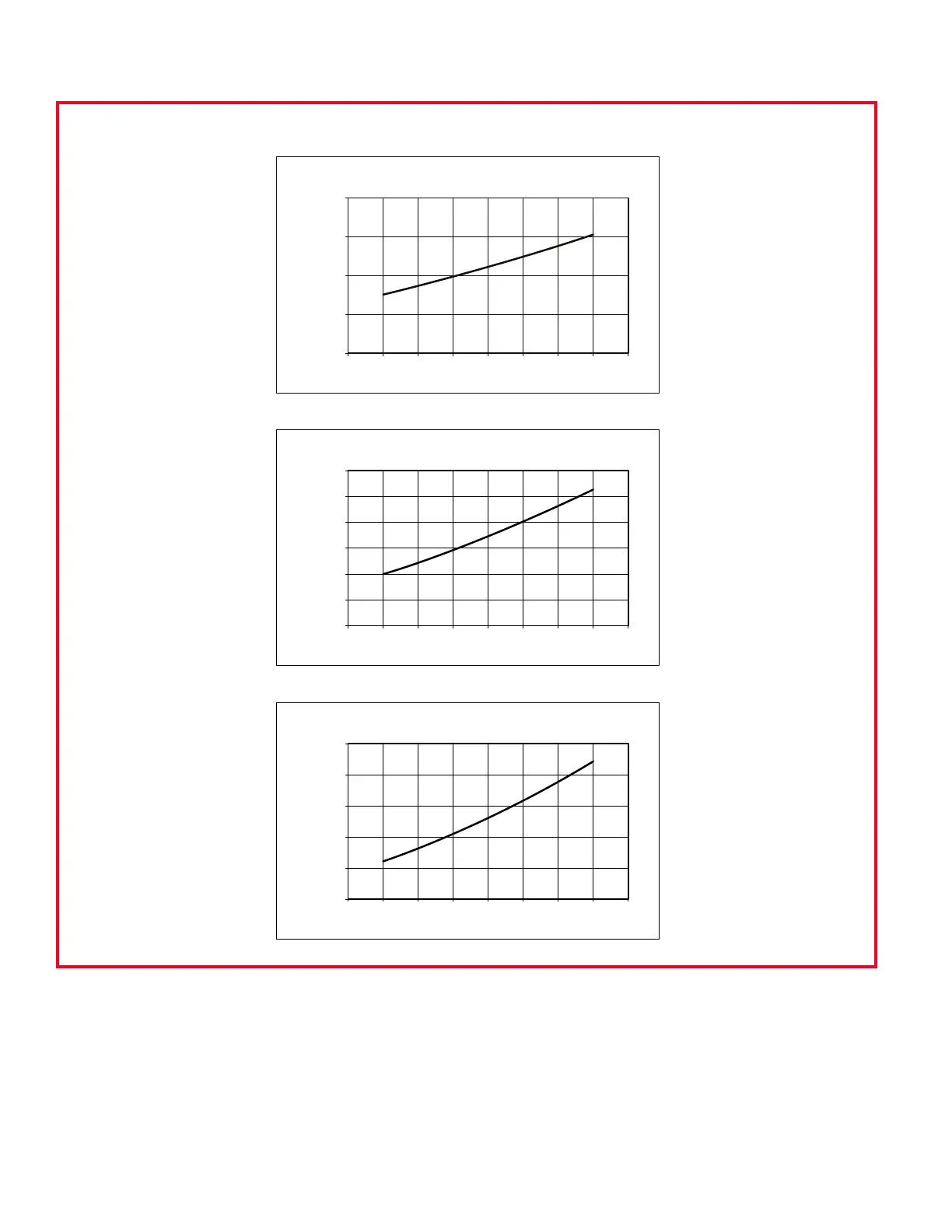

PERFECT HUMIDITY™ COIL PRESSURE DROPS
0.00
0.02
0.04
0.06
0.08
800 900 1000 1100 1200 1300 1400 1500 1600
Static Pressure Drop (in. wg)
Unit Airflow (CFM)
Dehumidification Coil Pressure Drop, 3 Ton Units
0.00
0.05
0.10
0.15
0.20
0.25
0.30
1100 1300 1500 1700 1900 2100 2300 2500 2700
Static Pressure Drop (in. wg)
Unit Airflow (CFM)
Dehumidification Coil Pressure Drop, 4 and 5 Ton Units
0.00
0.05
0.10
0.15
0.20
0.25
900 1200 1500 1800 2100 2400 2700 3000 3300
Static Pressure Drop (in. wg)
Unit Airflow (CFM)
Dehumidification Coil Pressure Drop, 6 Ton Units
Performance data (cont)
