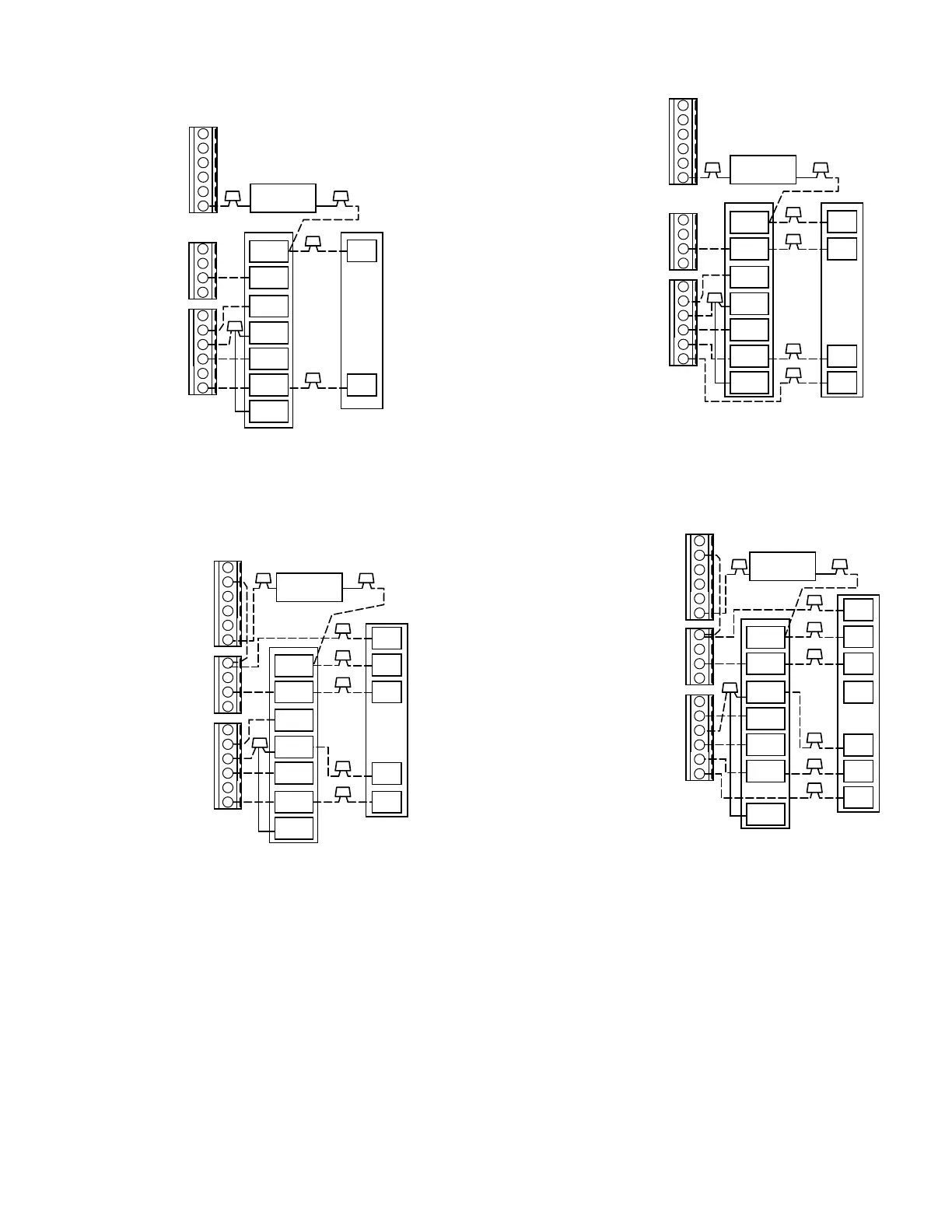

→ Fig. 33—Typical Fan Coil
with 1-Speed Heat Pump
A98107
C
R
C
R
G
W2
Y
W2
W3
Y
E
O
B
RH
DEF
RVS COOLING
TYPICAL 
FAN COIL
SINGLE-SPEED
HEAT PUMP
EQUIPMENT
CONTROLLER
N/A
24 VAC HOT
RC
W2
W1
Y2
G
Y1
HEAT STAGE 3
HEAT STAGE 2
FAN
HEAT/COOL STAGE 1
N/A
O
DEFROST
N/A
HUMIDIFY
DHUM
HUM
HUMIDIFIER
(24 VAC)
See notes 3 and 13
→ Fig. 31—Typical Fan Coil
with 1-Speed Air Conditioner
A98105
CC
R
G
Y
W2
W3
Y
E
O
B
RH
N/A
TYPICAL 
FAN COIL
SINGLE-
SPEED AIR
CONDITIONER
EQUIPMENT
CONTROLLER
N/A
24 VAC HOT
RC
W2
W1
Y2
G
Y1
HEAT STAGE 2
HEAT STAGE 1
N/A
FAN
COOL STAGE 1
N/A
N/A
HUMIDIFY
DEF
DHUM
HUM
HUMIDIFIER
(24 VAC)
See note 13
→ Fig. 34—Typical Fan Coil
with 2-Speed Heat Pump
A98108
C
R
W3
C
R
W3
W2
Y1
W2
G
Y
E
O
B
RH
RVS COOLING
TYPICAL 
FAN COIL
TWO-SPEED
HEAT PUMP
24 VAC HOT
RC
W2
W1
Y2
G
Y1
HEAT STAGE 4
HEAT STAGE 3
FAN
COOL/HEAT STAGE 1
COOL/HEAT STAGE 2
O
Y2
EQUIPMENT
CONTROLLER
DEFROST
N/A
N/A
HUMIDIFY
DEF
DHUM
HUM
HUMIDIFIER
(24 VAC)
See notes 3, 4, 7, 8, 10, and 13
→ Fig. 32—Typical Fan Coil
with 2-Speed Air Conditioner
A98106
C
R
C
R
G
Y2
Y1
W2
W3
Y
E
O
B
RH
N/A
TYPICAL 
FAN COIL
TWO-SPEED 
AIR CONDITIONER
EQUIPMENT
CONTROLLER
N/A
24 VAC HOT
RC
W2
W1
Y2
G
Y1
HEAT STAGE 2
HEAT STAGE 1
FAN
COOL STAGE 1
COOL STAGE 2
N/A
N/A
HUMIDIFY
DEF
DHUM
HUM
HUMIDIFIER
(24 VAC)
See notes 4 and 13
—23—
