BST ekr CON 600 User Manual

7
Operation
34/47 ekr CON 600, ekr CON 600 net – Master-Slave Guiding with Sensor Positioner
7.3 Operation Display
If the Master-Slave guiding is active, the two sensor symbols in the
operation display of the controller show the position of the
MASTER and of the SLAVE web.

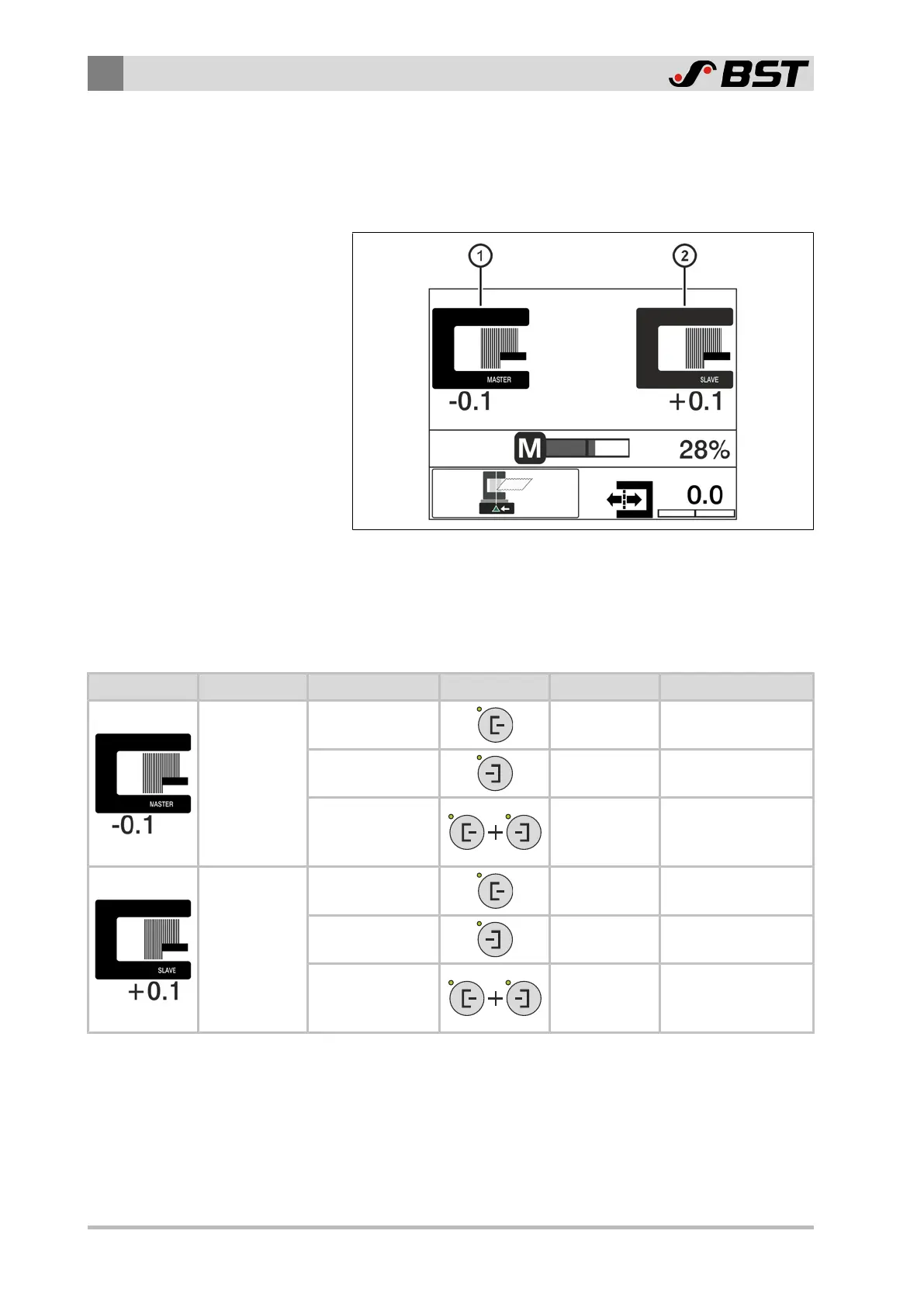

Fig.15: Operation display when Master-Slave guiding is active
①
Position display MASTER web
②
Position display SLAVE web
The position displayed depends on the selected guiding mode.
Sensor Symbol Material Web Guiding Mode Key(s) Edge Sensor Position Displayed
MASTER web
Guiding to the
left web edge
Sensor3 Left web edge
Guiding to the
right web edge
Sensor4 Right web edge
Web center-line
guiding
Sensor3
&
Sensor4
Web center-line
SLAVE web
Guiding to the
left web edge
Sensor1 Left web edge
Guiding to the
right web edge
Sensor2 Right web edge
Web center-line
guiding
Sensor1
&
Sensor2
Web center-line
