59
D45 VIDEO DOOR ENTRY SYSTEM

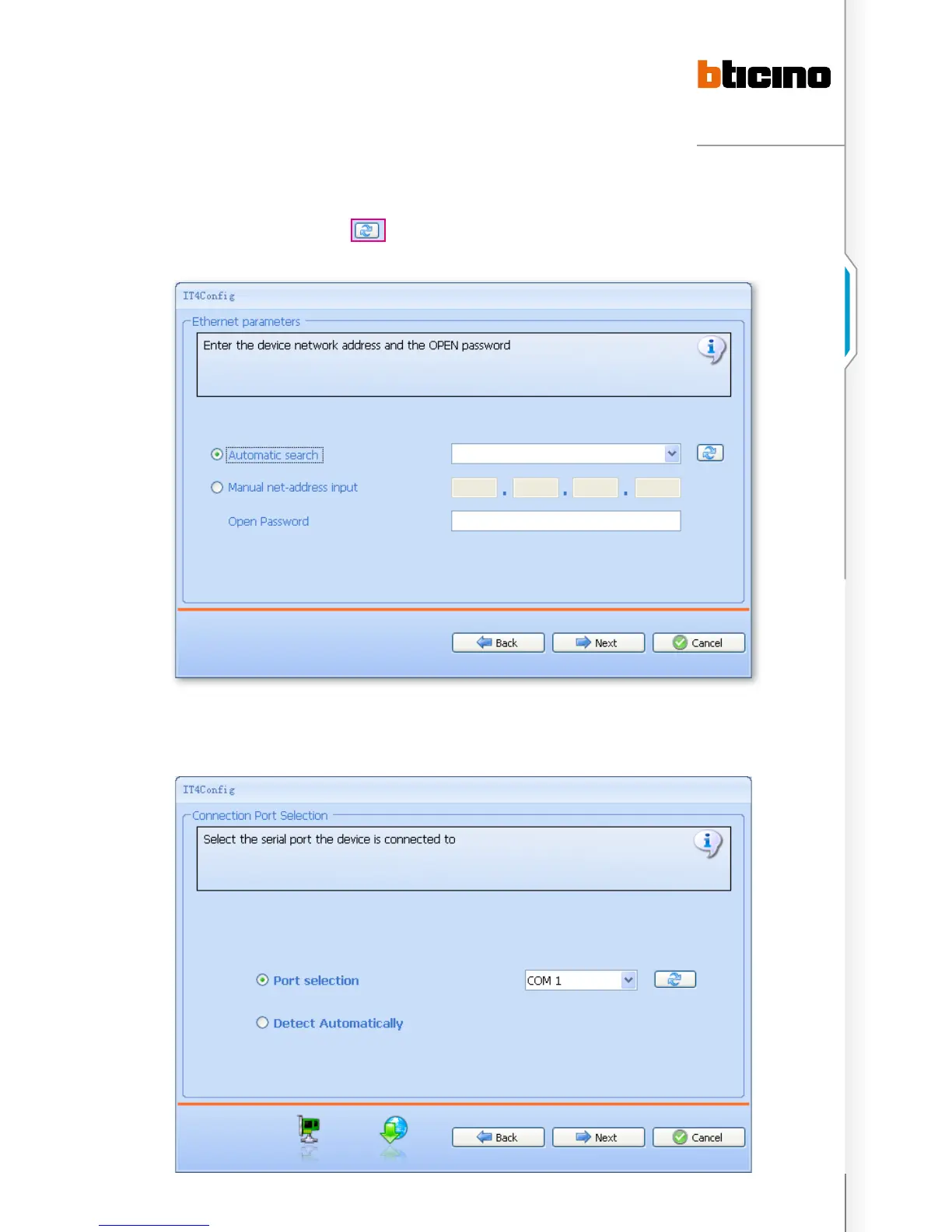

As for the above, you can select Ethernet for the configuration. Click NEXT and as shown in the following diagram. The first
time “Automatic search” can be used. Click
and let the system find 323011, after which you can input the password into
Open Password. The initial password is 12345. Then click NEXT to go to the download configuration interface. (it will indicate
either success or failure).
If serial port is selected for the configuration, click NEXT. As it can be seen in the following diagram, select the port selection
to manually, specify the serial port number, and select Detect Automatically to automatically detect the serial port. It is
not necessary to specify the serial port. Then click NEXT to go to configuration download. (The serial port does not require
password). It will indicate either success or failure.
