Bticino HC4690 - Configuration and Connectivity; Configuration; USB Connection; Serial Connection

2

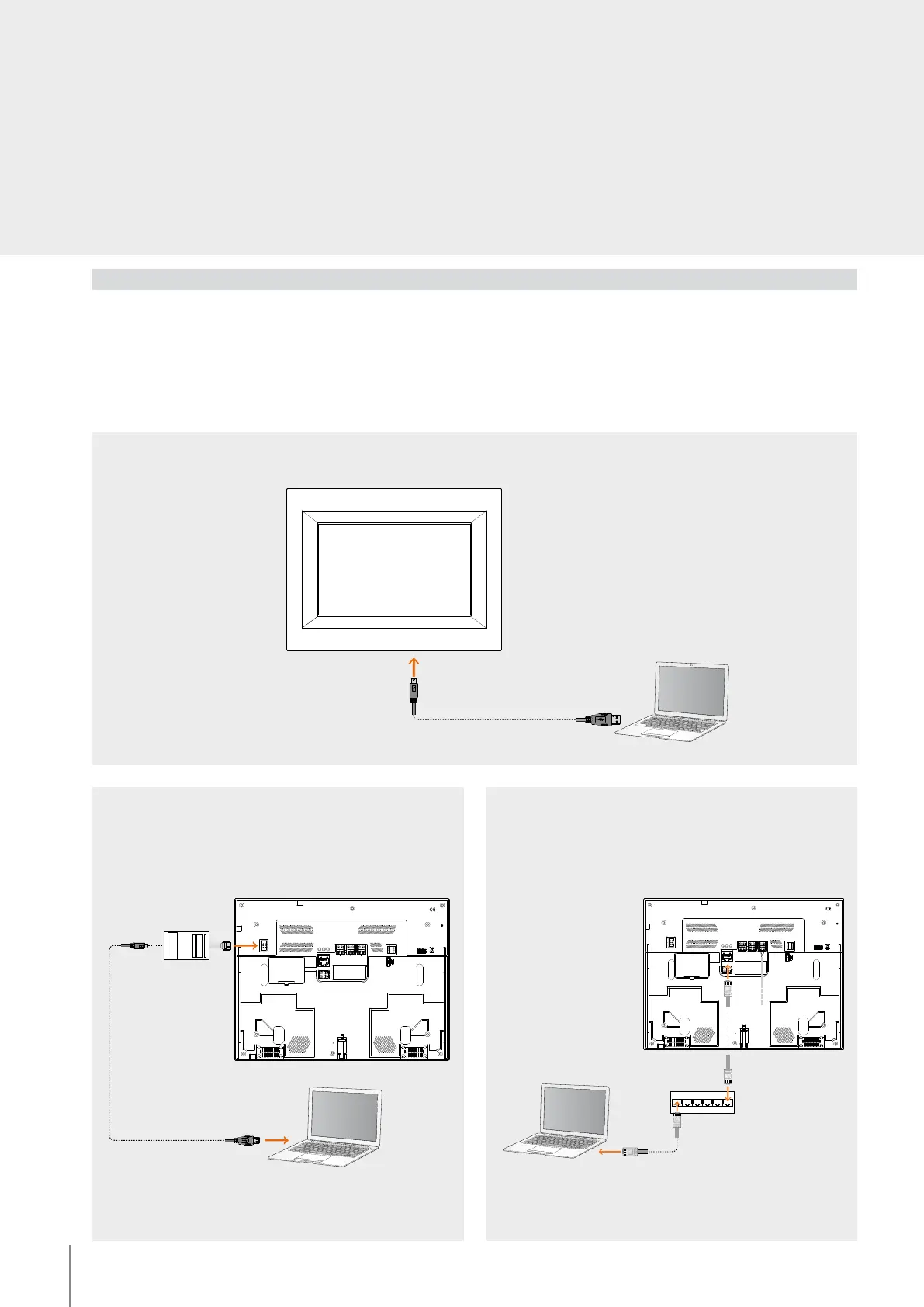

Multimedia Touch Screen must be configured using the TiMultimediaTouchScreen
software supplied as standard. In order to receive/transfer the configuration performed,
or to update the firmware, connect Multimedia Touch Screen to the PC using one of the
three solutions:
- USB-miniUSB cable;
- serial connector (3559);
- Ethernet cable.
Configuration
USB connection
Serial connection
Ethernet connection
PSTN
BUS 2 1
ON
OFF
ETH
SCS AUDIO OUT
3559
PSTN
BUS 2 1
ON
OFF
ETH
SCS AUDIO OUT
Switch
HC/HS 4690
BT00318-a-UK
