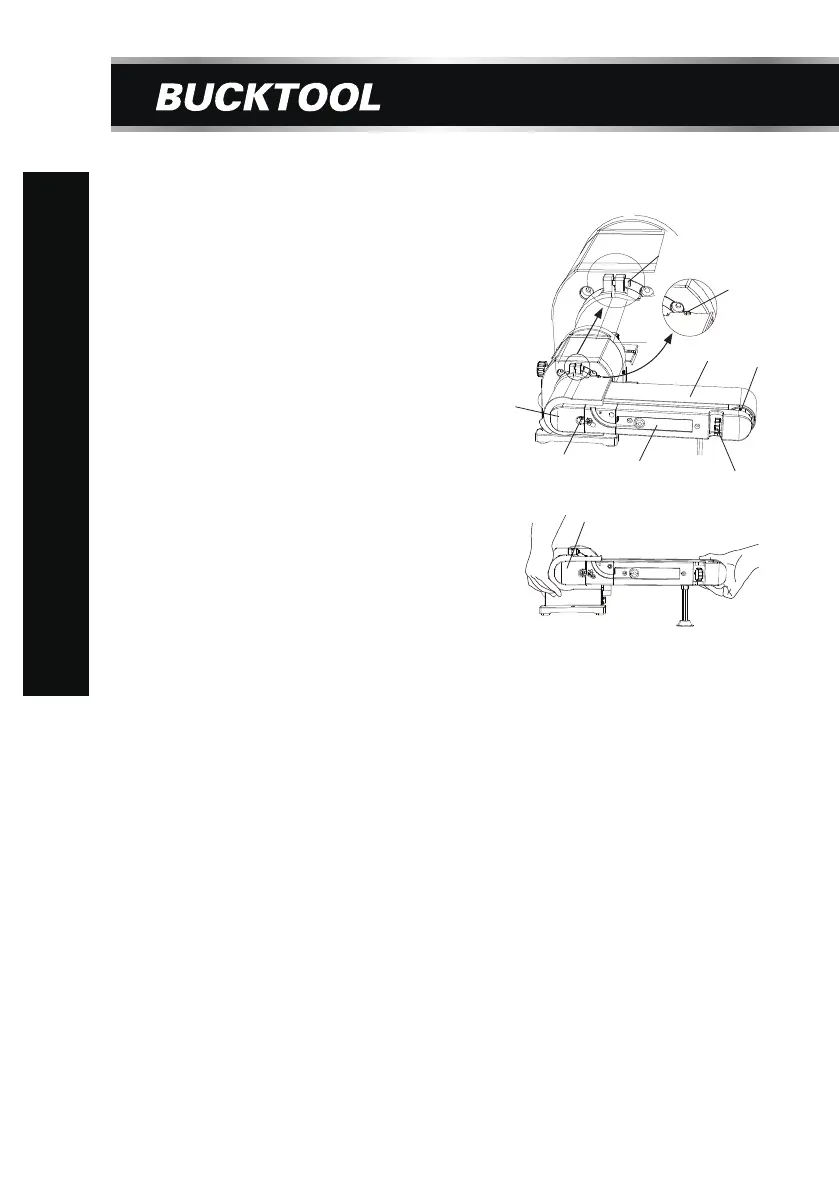

7. Replace and tighten the two screws (2, 3)
and push the tension lever (4) in to apply
belt tension.
8. Push the belt by hand and check if the
sanding belt tends running to one side or
the other of the two drums.
9. View from the switch end of sander, if the
sanding belt runs toward disc, slightly turn
the tracking knob (8) clockwise (down).
10.View from the switch end of sander, if the
sanding belt runs away from the disc,
slightly turn the tracking knob (8)
counterclockwise (up).
11. Plug in the sander and turn the switch
ON and OFF quickly to check if the
sanding belt moves to either side.
Re-adjust and fine-tune the belt tracking
if necessary.
LUBRICATION
Ball bearings are grease packed at the factory and require no further lubrication.
Use a paste wax to ensure smooth operation on all moving table parts. Do not use
any lubrication on the belt plate as this might end up on the wheels, causing them
to slip.
BD4603
OPERATING INSTRUCTIONS
17
1
2
3
4
7
6
5
8
6
