Panel Radiator
Applications Manual
Panel Radiator Applications Manual | 03.2019
Technical specifi cations are subject to change without prior notice

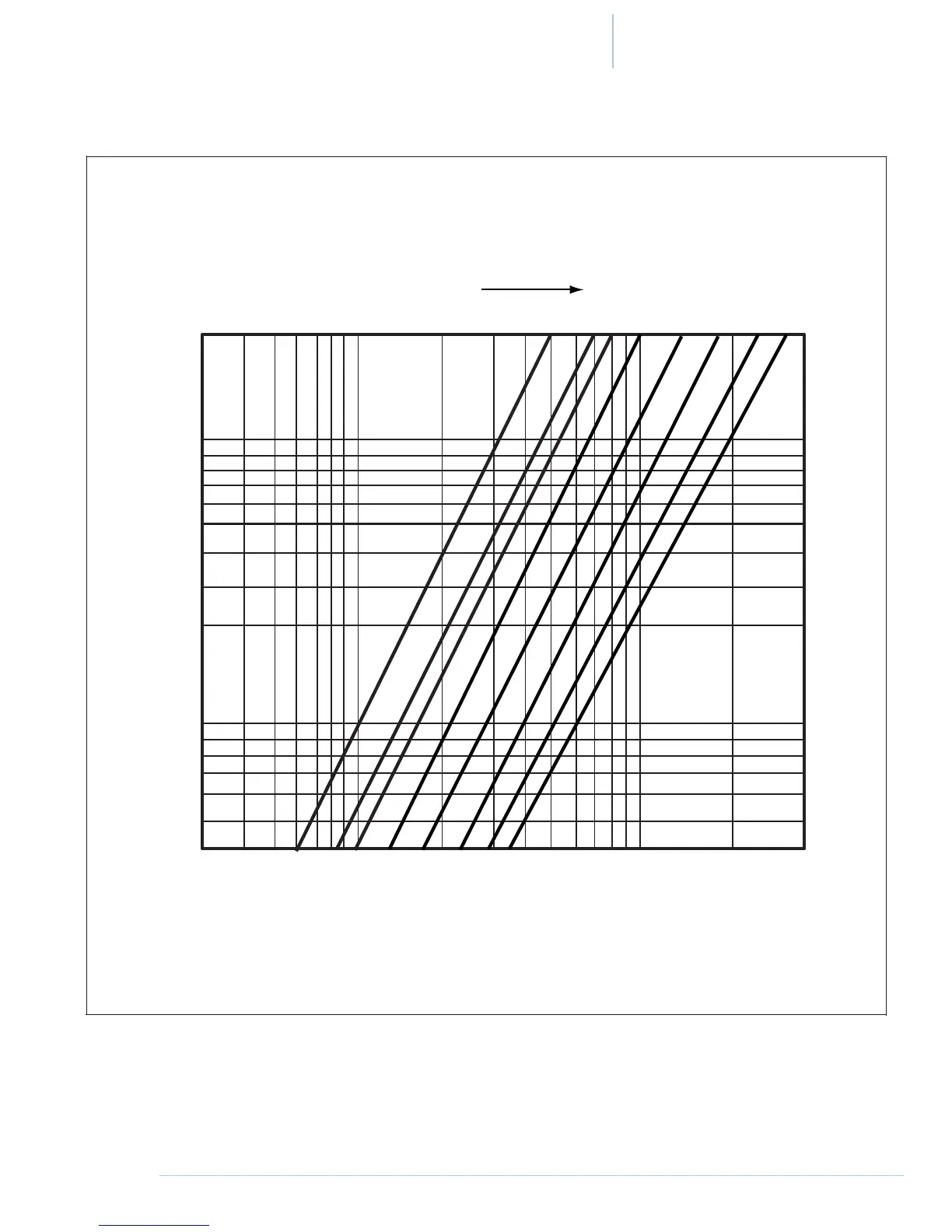

Pressure drop curves:
Settings on flowsetter
1 2 3 4 5 6 7 N
200
100
90
80
70
60
50
40
30
20
10
9
8
7
6
5
4
Pressure Drop in Inches H 0
²
0.05 0.08 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.9 1 2 3
GPM
Fig. 13
