Buderus Logamatic SC40 Installation And Servicing Instructions

Installation (for engineers only)
Logamatic SC40 - Technical specifications are subject to change without prior notice.
32
4

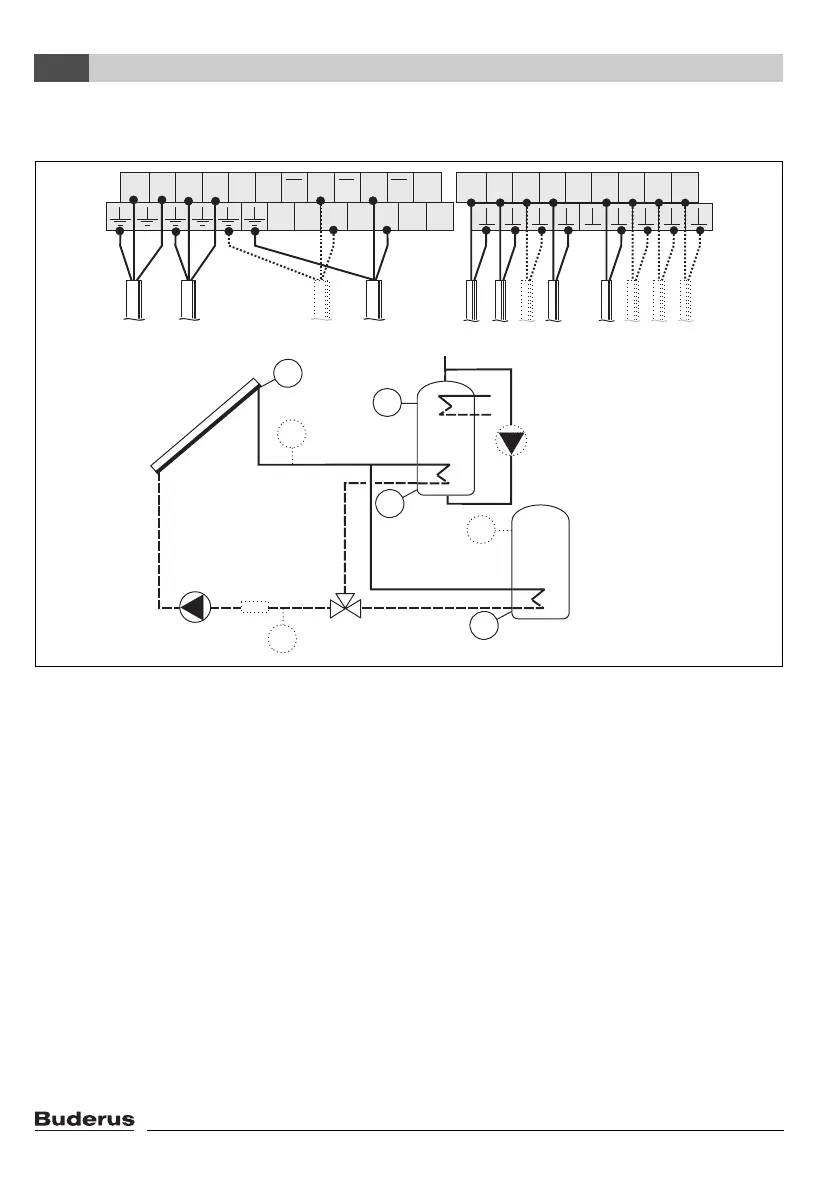

4.4.20 Configuration diagram H10 - heating boost system with 2 cylinders connected
via valve and without return boost valve
Fig. 26
R1 Solar circuit pump 1
R3 Daily heating pump (optional)
R4 Cylinder selection valve
S1 Collector temperature sensor FSK
S2 Cylinder 1 bottom temperature sensor
S3 Cylinder 2 top temperature sensor (optional)
S4 Cylinder 2 bottom temperature sensor
S6 Cylinder 1 top temperature sensor (optional)
S7 Flow heat meter WMZ temperature sensor (optional)
S8 Return heat meter temperature sensor (optional)
WMZ Heat meter (optional)
WMZ
R1
S2
S6
S3
S8
S7
S1
R4
S4
R3
7747006072-24.1 SD
S1 S2 S3 S4 S5 S6 S7 S8 I9
L N R1N1R2N2R3R3R4R4R5 R5
L3 N3 L4 N4 L5 N5
230V
AC
R3
R1
S1 S2 S3 S4 S7 S8
WMZ
S6
R4
