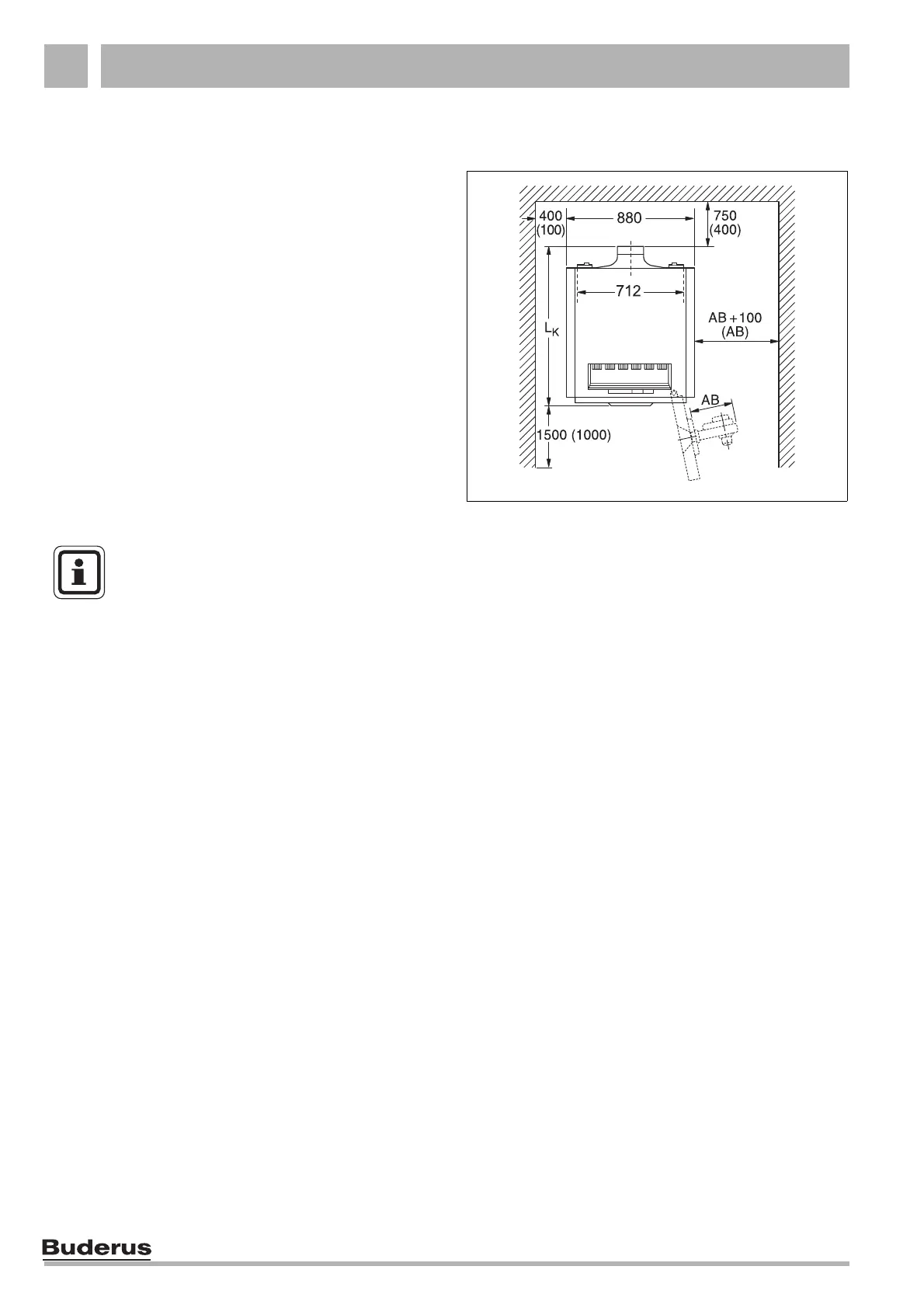

Fig. 4 Boiler room with boiler in place [mm]
2.3.2 Clearance from walls recommended for
installation and maintenance
We recommend you maintain the indicated clearance
between boiler and walls, which is required for opening
the burner door, the boiler installation as well as for
cleaning and maintaining your system
(Fig. 4).
You may hang the burner door for l.h. or r.h. opening.
When installing your boiler please maintain the
recommended minimum dimensions (shown in
brackets). Select the recommended clearances between
wall and boiler to enable easy access during installation,
maintenance and service work.
The distance from the wall on the hinge side must at
least permit the burner withdrawal (AB). We recommend
a distance between wall and boiler of AB
+ 100 mm.
Length L
K
depends on the number of boiler segments or
the boiler size (see "Dimensions and specification",
page
35).
NOTE!
If a clearance less than the recommended
distance is chosen, you will not be able to
clean the boiler with the optional cleaning
kit. As an alternative we would recommend
the use of shorter (length approx. 1 m)
cleaning devices or wet cleaning.
