Allied Front-End Loader
- 39 - P4094
2595 TSL – 2595 S TSL – 2596 TSL – 2596 S TSL

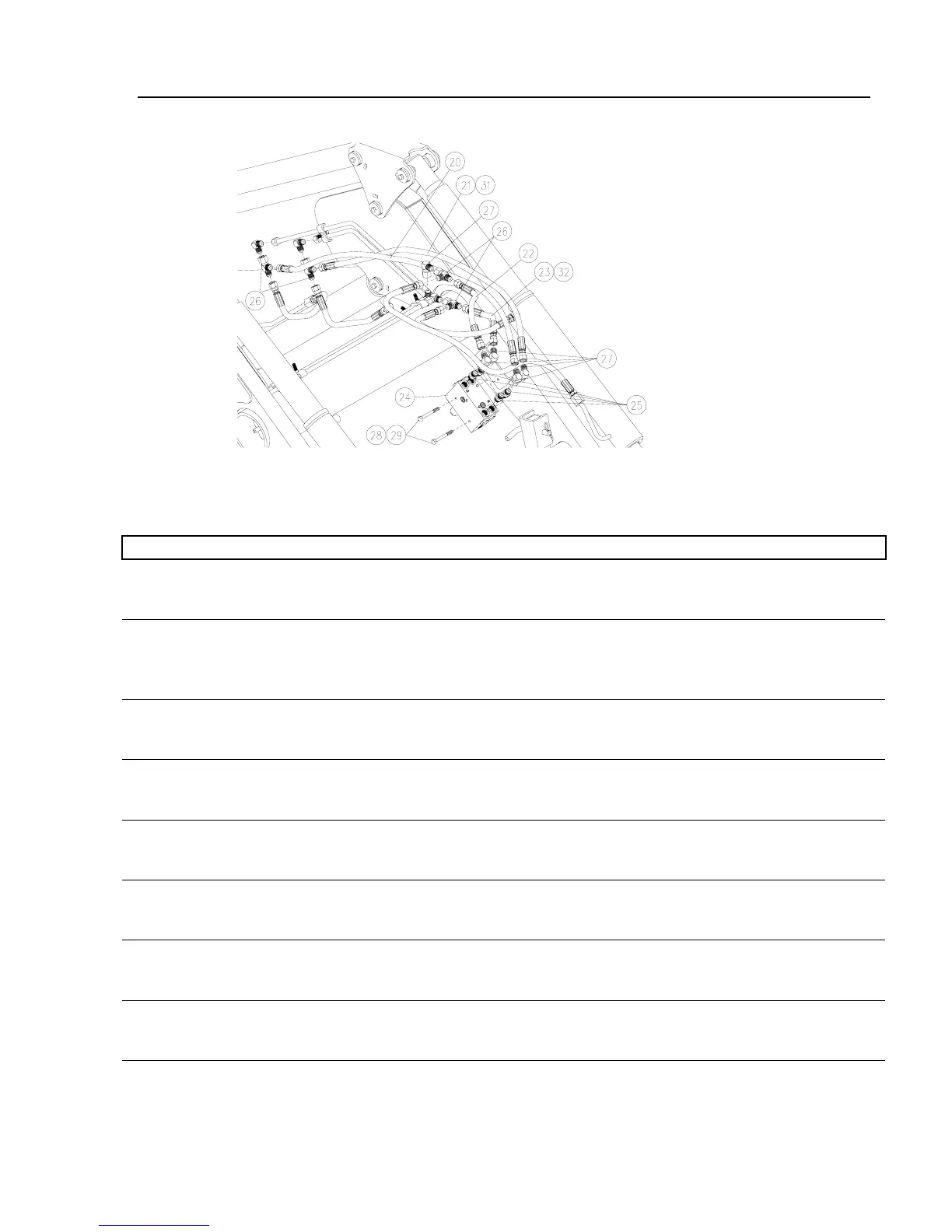

Hydraulic Plumbing Assembly
Item Part No. Description 2595 2595 S 2596 2596 S
1 Ref. Bucket Cylinder (See cylinder assembly for breakdown) 2 2 2 2
2 Ref. Lift Cylinder (See cylinder assembly for breakdown) 2 2 2 2
3 114605 Hose 3/8 x 24 3/4 - 16 MORB x 3/4 - 16 SWFJIC 2 2 2 2
4 811467 Hose 3/8 x 36 3/4 - 16 MORB x 3/4 - 16 SWFJIC 2 2 2 2
5 811754 Hose 3/8 x 18 3/4 - 16 MORB x 3/4 - 16 SWFJIC 2 2 2 2
6 812696 Hose 3/8 x 18 3/4 - 16 SWFJIC x 3/4 - 16 SWFJIC 2 2 2 2
7 112837 Tubing Bucket Cyl. Cross Tube 2 2 2 2
8 113031 Tubing Lift Cyl. Common (23.0) 1 1 1 1
9 115910 Tubing Lift Cyl. Common (15.0) 1 1 1 1
10 115915 Tubing Bucket Cyl. Top/Dump - - 1 1
10 115913 Tubing Bucket Cyl. Top/Dump 1 1 - -
11 115916 Tubing Bucket Cyl. Bottom/Rollback - - 1 1
11 115914 Tubing Bucket Cyl. Bottom/Rollback 1 1 - -
12 114921 Tubing Lift Cyl. Top/Drop - - 1 1
12 114485 Tubing Lift Cyl. Top/Drop 1 1 - -
13 114922 Tubing Lift Cyl. Bottom/Raise - - 1 1
13 114486 Tubing Lift Cyl. Bottom/Raise 1 1 - -
14 11362 Clip Pipe Std. 9 9 9 9
15 811414 Elbow 90 3/4 MORB x 3/4 MJIC 2 2 2 2
16 812128 Elbow 90 3/4 MJIC x 3/4 MJIC 4 4 4 4
17 812069 Tee 3/4 MJIC 4 4 4 4
18 81344 Nut Lock (Nylon) 0.375 NC 9 9 9 9
19 81592 Nut Hex 0.375 NC GR2 PL 4 4 4 4
20 811706 Hose 3/8 x 48 3/4 SWFJIC x 3/4 SWFJIC 1 1 1 1
21 115257 Hose 3/8 x 38 3/4 SWFJIC x 3/4 SWFJIC 1 1
22 115259 Hose 3/8 x 9 3/4 SWFJIC x 3/4 SWFJIC 1 1 1 1
23 115258 Hose 3/8 x 6.5 3/4 SWFJIC x 3/4 SWFJIC 1 1
