6-69

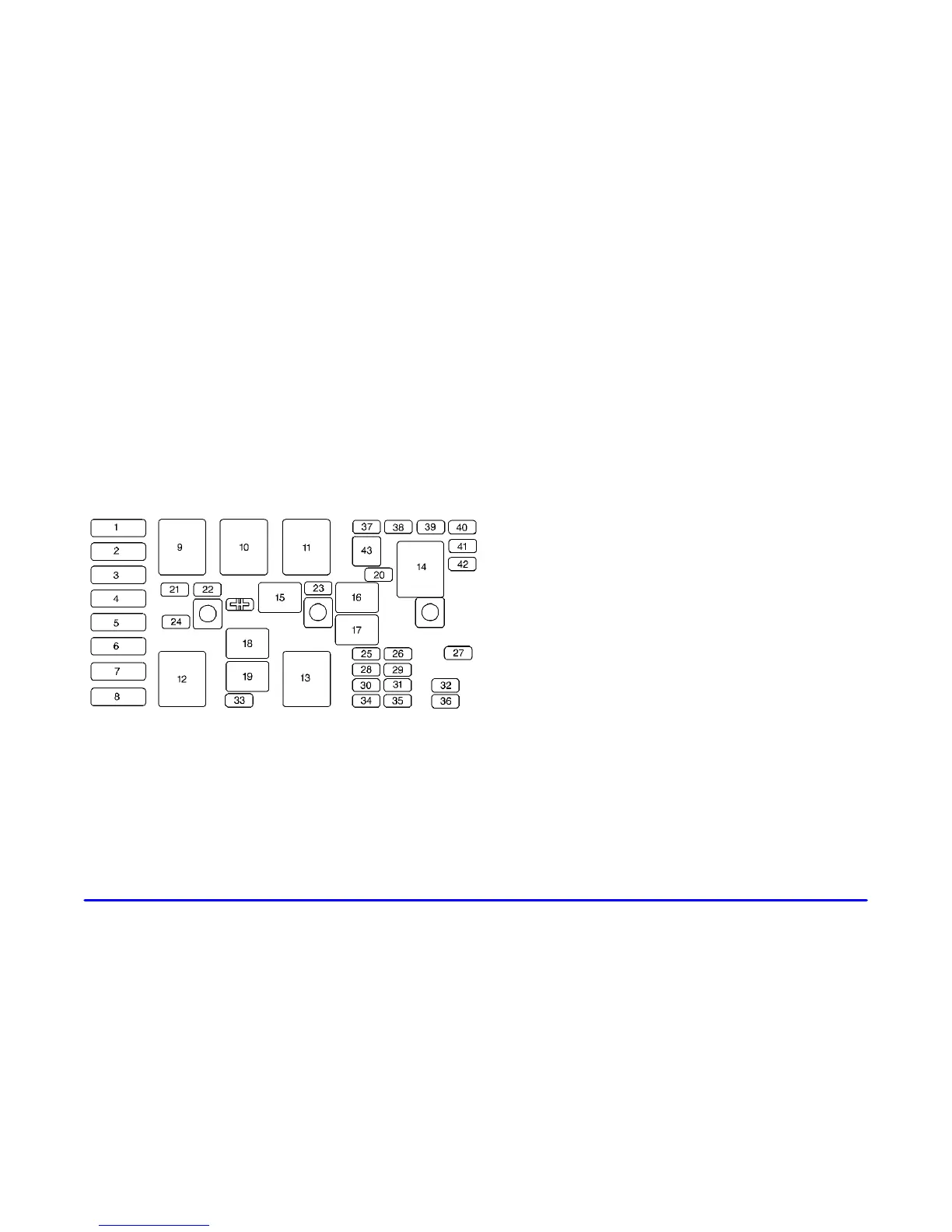

Underhood Fuse Block
Some fuses and relays are located in the underhood
fuse block on the passenger’s side of the vehicle in
the engine compartment. See “Engine Compartment
Overview” in the Index for more information
on location.
Maxi Fuse Usage
1 Anti
-Lock Brake System
2 Starter Solenoid
3 Power Seats, Rear Defog, Heated Seats
4 High Blower, Hazard Flasher,
Stoplamps, Power Mirror, Door Locks
5 Ignition Switch, BTSI, Stoplamps,
ABS, Turn Signals, Cluster, Air Bag,
DRL Module
6 Cooling Fan
7 Retained Accessory Power, Keyless
Entry, Data Link, Heating Ventilation
Air Conditioning Head, Cluster, Radio,
Auxiliary Power (Power Drop),
Cigarette Lighter
8 Ignition Switch, Wipers, Radio,
Steering Wheel Controls, Body
Control Module, Auxiliary Power
(Power Drop), Power Windows,
Sunroof, Heating Ventilation Air
Conditioning Controls, Daytime
Running Lamps, Rear Defog Relay
To Next Page
