Burlington T5 - Page 2

D
Installation
HOT
INDICE
“O” RING
RUBBER
WASHER
FIXING
NUT
HANDLE
FLAT WASHER
SCREW
SPRING WASHER
HOT TAP BODY
DECORATIVE
CAP
Basin / Bath
Worksurface
1. From a front view, identify the hot tap on the left hand of the basin (bath), and the cold tap on the right.
2. Fit the “O” ring into the groove on the underside of the tap body.
3. Insert the tap body into the hole on the basin (or bath) from above.
4. Tighten the rubber washer & the fixing nut and secure the tap body on the basin (or bath)
5. Connect the water supply pipe to the tap body with the hot water on the left and cold water on the right.
NOT INCLUDED IN THE TAP BOX

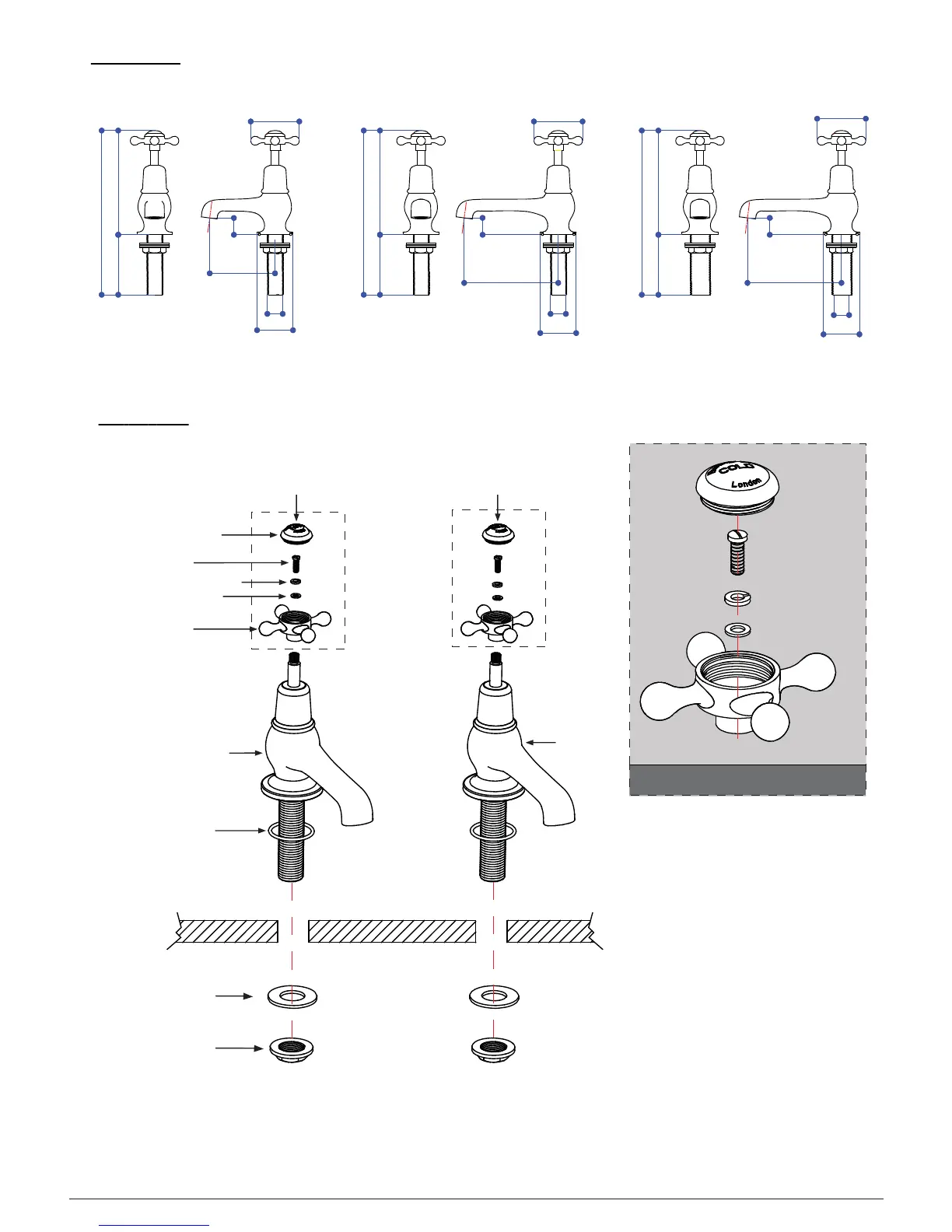

Dimension
2 - 2
COLD
INDICE
Basin Tap 3” T5
Basin Tap 5” T6
Bath Tap T7
G3/4
219
22.5
126
Ø48
22.5
G1/2
126
Ø48
22.4
139
87.3
G1/2
Ø48
65
219
139
80
65
80
65
219
139
80
COLD TAP
BODY
Note: To ensure the Kensington lever tap head
faces in the correct forward position once
installed, you may need to tighten the
cartridge into the tap body a notch with
a monkey spanner and then re-attach the
tap head.
