25
15

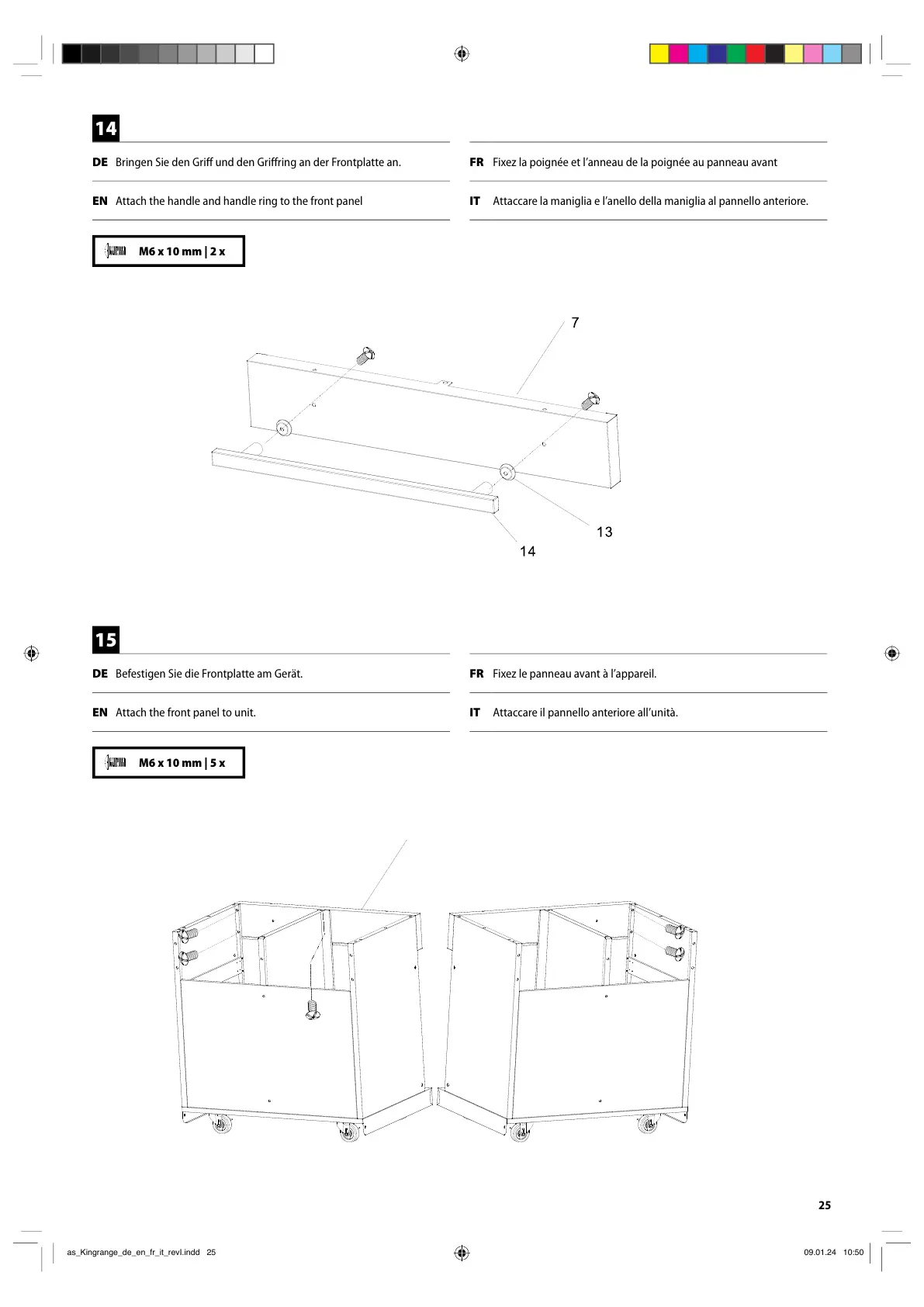

14
M6 x 10 mm | 2 x
DE Bringen Sie den Gri und den Griring an der Frontplatte an. FR Fixez la poignée et lanneau de la poignée au panneau avant
EN Attach the handle and handle ring to the front panel IT Attaccare la maniglia e lanello della maniglia al pannello anteriore.
M6 x 10 mm | 5 x
DE Befestigen Sie die Frontplatte am Gerät. FR Fixez le panneau avant à lappareil.
EN Attach the front panel to unit. IT Attaccare il pannello anteriore all’unità.
