The HDTH models are shipped from the factory partially assembled on shipping stands allowing
the machine to be shipped in a vertical position. The shipping stands attached to the front of
the machines must be removed prior to the assembly process.
Do not attempt to remove the shipping stands with the machine in the vertical
position.
PREPARING TO ASSEMBLE
1. With the aid of a overhead winch or a fork lift, lower the cutter to the ground so that it is rest-
ing securely on a firm flat surface
2. Remove Shipping Stands
3. Remove the Driveshaft, Mast Halves and Mast Supports from the machine.
4. Remove the Bag of Parts from under the shielding.
5. Leave the Caster Wheels in the shipping position at this time.
HDTH 7 Finish Mower 08/20
Assembly Section 3-3
© 2020 Alamo Group Inc.
ASSEMBLY
ASSEMBLY

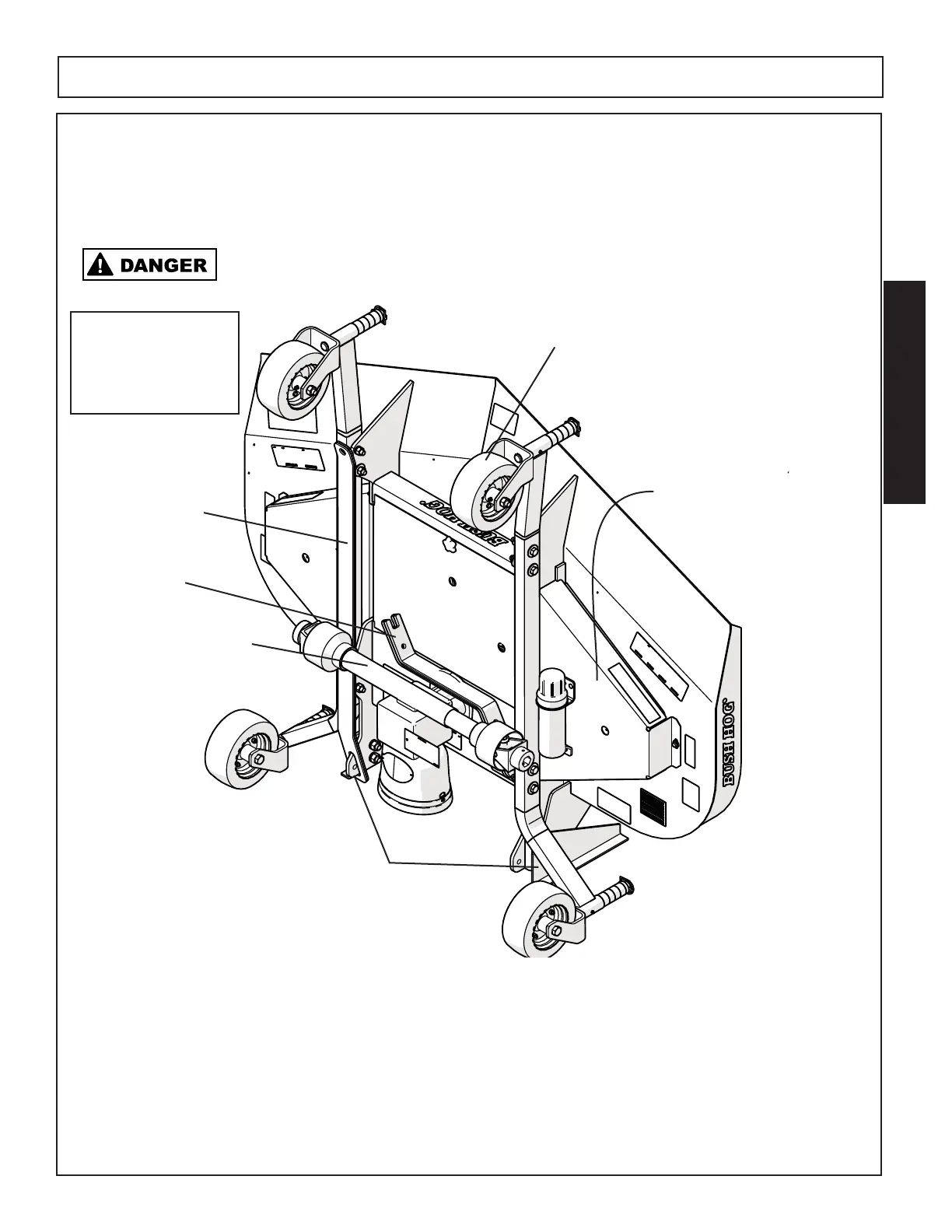

Figure 3-1
HDTH
as shipped in
vertical position.
Mast Supports
Driveshaft Assembly
Mast Halves
Shipping Stand
Bag of parts Located
under shield
Caster Wheels
