Bush Hog HDTH7 - DRIVELINE ATTACHMENT (Figure 3-7)

HDTH 7 Finish Mower 08/20
Assembly Section 3-9
© 2020 Alamo Group Inc.
ASSEMBLY
ASSEMBLY
DRIVELINE ATTACHMENT (Figure 3-7)
The Driveline Supplied with the HDTH Series Finish Mowers are ASAE size 3 with 1-3/8”- 6 spline yokes.The im-
plement yoke may have a locking push pin or a locking collar for the driveline to lock to the implement gearbox
shaft. The tractor yoke of the driveline is a locking collar style
.
Place the yoke with the locking push pin or locking collar locking ring on the implement gearbox shaft depress the
locking pin or slide the collar back and slide the yoke on the gearbox shaft until the locking pin or locking balls en-
gage the locking groove of the gearbox shaft. Release pin or collar and give a firm tug on the driveline to be sure
the driveline is locked in the groove.

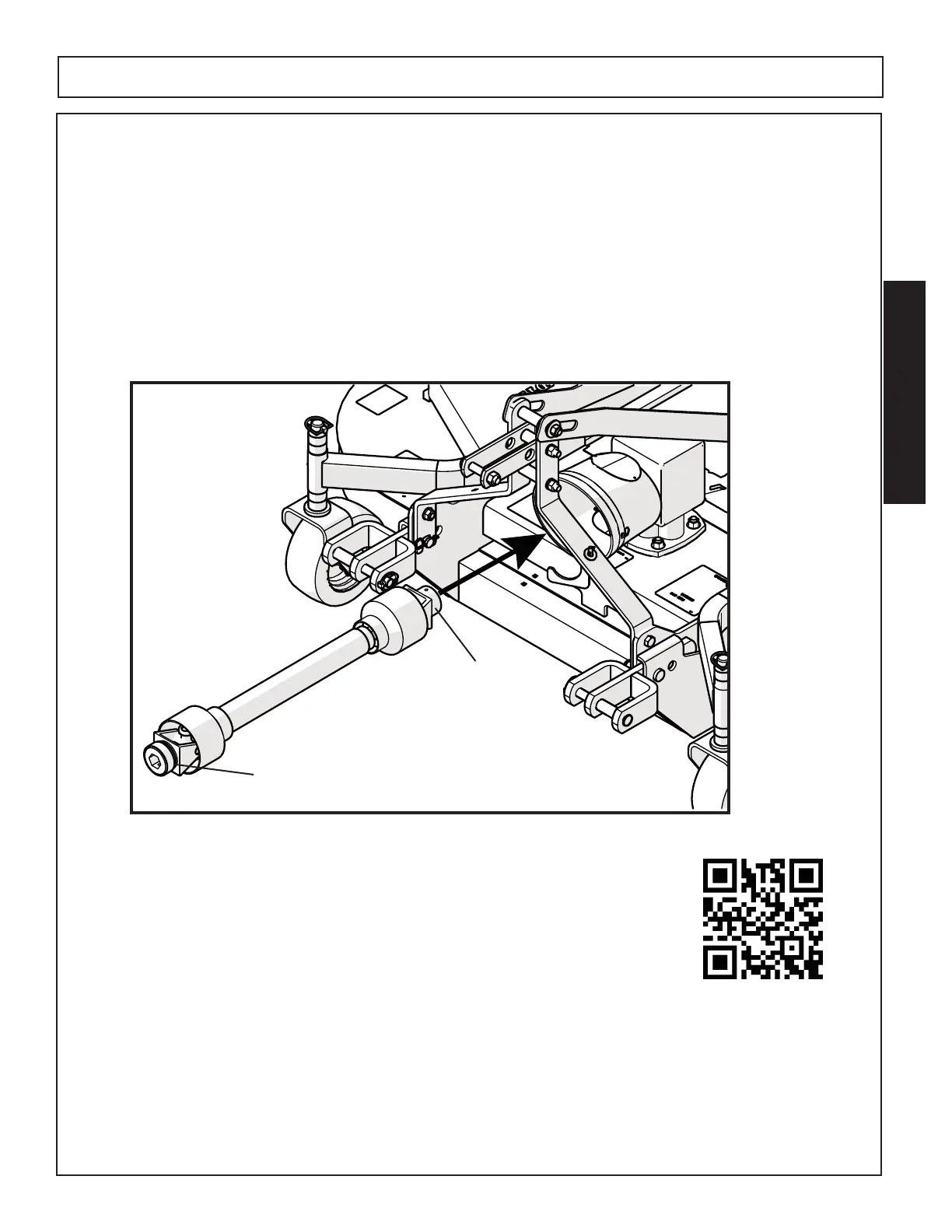

Figure 3-7
Lock Collar
Locking Ring
Locking Push Pin
or
Lock Collar Locking
Ring
IMPORTANT: Scan this QR Code with your smart phone to link to the ADMA
Driveline Safety Manual for more information on the safe use of a driveline during
normal operation and maintenance. Or type in your internet browser the following
web address: www.algqr.com/dme
Ops-0009-MISC
