or online at www.argos-support.co.uk If you still require further assistance, call one of our experts on 0345 604 0105.
appliance. All pole disconnection circuit breaker
with a contact opening of at least 3 mm must be
installed inside the supply circuit.
• Fused switch must be accessible once the product
has been installed.
• IMPORTANT: The following diameters of the supply
cable must be used at least in case of one phase
connection;
Current on rating
label
Diameter of supply cable
0-3 A 3x0.75
3-10 A 3x1
10-16 A 3x1.5
16-40 A 3x2.5
40-...A 3x4
Rated power on rating label
at 220 V at 230 V at 240 V
0-599W 0-699W 0-799W
600-2099W 700-2299W 800-2499W
2100-3349W 2300-3649W 2500-3949W
3350-8199W 3650-8999W 3950-9799W
8200-.....W 9000-.....W 9800-.....W
• Do not use adaptors, multiple sockets and/or
extension cord.
• The supply cord should be kept away from hot parts
of appliance. Otherwise the cord may be damaged,
causing short circuit.
• In case the cord is damaged, contact Authorized
Service to have it changed.
• Any wrong electric connection may damage your
appliance, as well as endangering your safety
rendering your guarantee invalid.
• The manufacturer declares that it has no
responsibility against any kind of damages and
losses that are caused by improper connections that
are performed by unauthorized person.
• The appliance is adjusted as appropriate for 230V
or 220-240V and 400V 3N or 380-415V 3N of
electricity. If th network electricity is different than
this informed value, immediately contact to our
authorized service.
• Use the H05VV, H05V2V2 or H05RR type supply
cord.
• Some appliances can be equipped with special
plug(Perilex or Norplug). If it is necessary, change it
with the same specified spare parts.
• These plugs can be used only in some countries.
• Use 16A/400V 5 pin for perilex plug and 25A/250V
for Norplug.

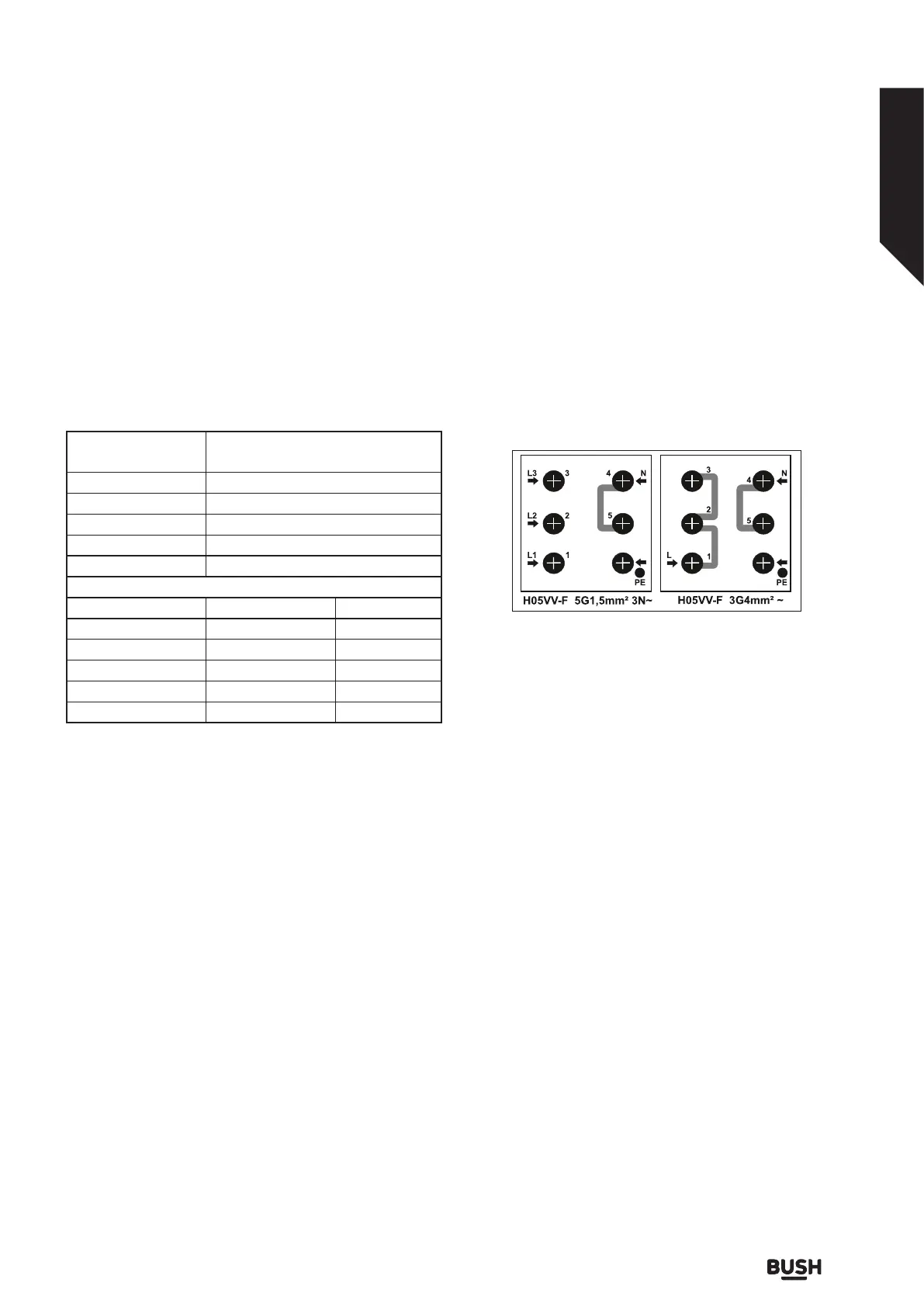

• Connection diagram is given below.
• WARNING: For single phase connection, three
shortcut circuit bridge must be installed as seen
above picture.
• If circuit bridge is not installed properly, some of
cooking zones does not operate.
