ENGLISH
37

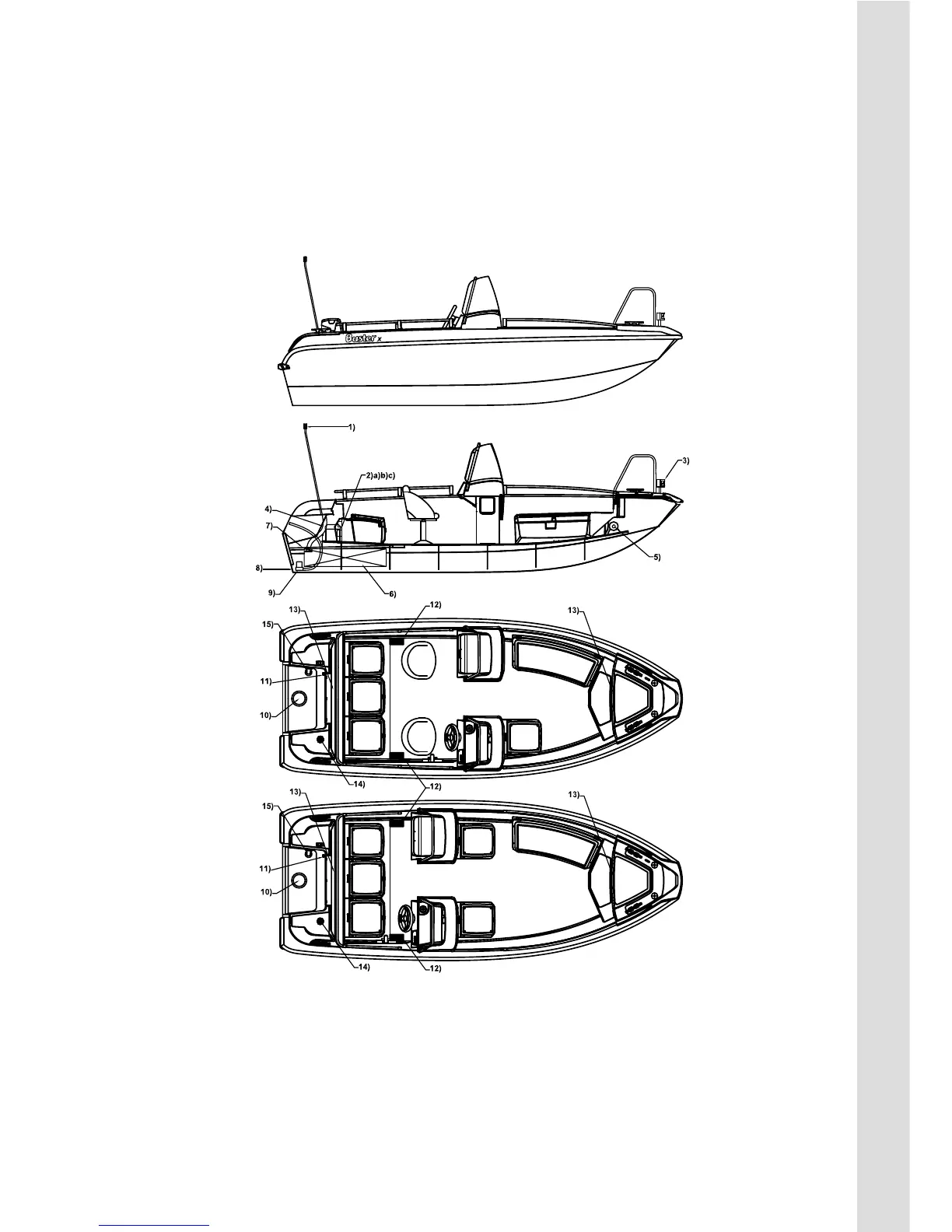

APPENDIX 2: BUSTER X OVERALL ARRANGEMENT DIAGRAMS
The overall arrangements of the diagrams are not to scale. Because of the
modular nature of the fittings available for the boat, the diagrams present
the maximum number of fittings available for a given arrangement. The
boat may not be equipped with all the fittings shown. Due to continuous
product development, the manufacturer assumes no responsibility for pos-
sible variations.
Buster X
1) Mast navigation light; visible all-round, white, output 10W
2) a) Battery housing; b) fuse box; c) main power switch
3) Navigation lights; 112.5° (red) and 112.5° (green), output 10W
4) Fuel fi ller hose
5) Powder fi re extinguisher, 2 kg
6) Fuel tank
7) Cockpit draining hose
8) Stern drain plug
9) Bilge pump
10) Service hatch for fuel tank and bilge pump
11) Breather valve for fuel tank
12) Cockpit draining well
13) Ventilation opening for bilge
14) Fuel fi ller bushing
15) Fuel fi lter/water separator
