BVM PQSensor MkVI - Page 11

www.bvmsystems.co.uk
sales@bvmsystems.co.uk
40-0287-12
- 11 -
Appendix III

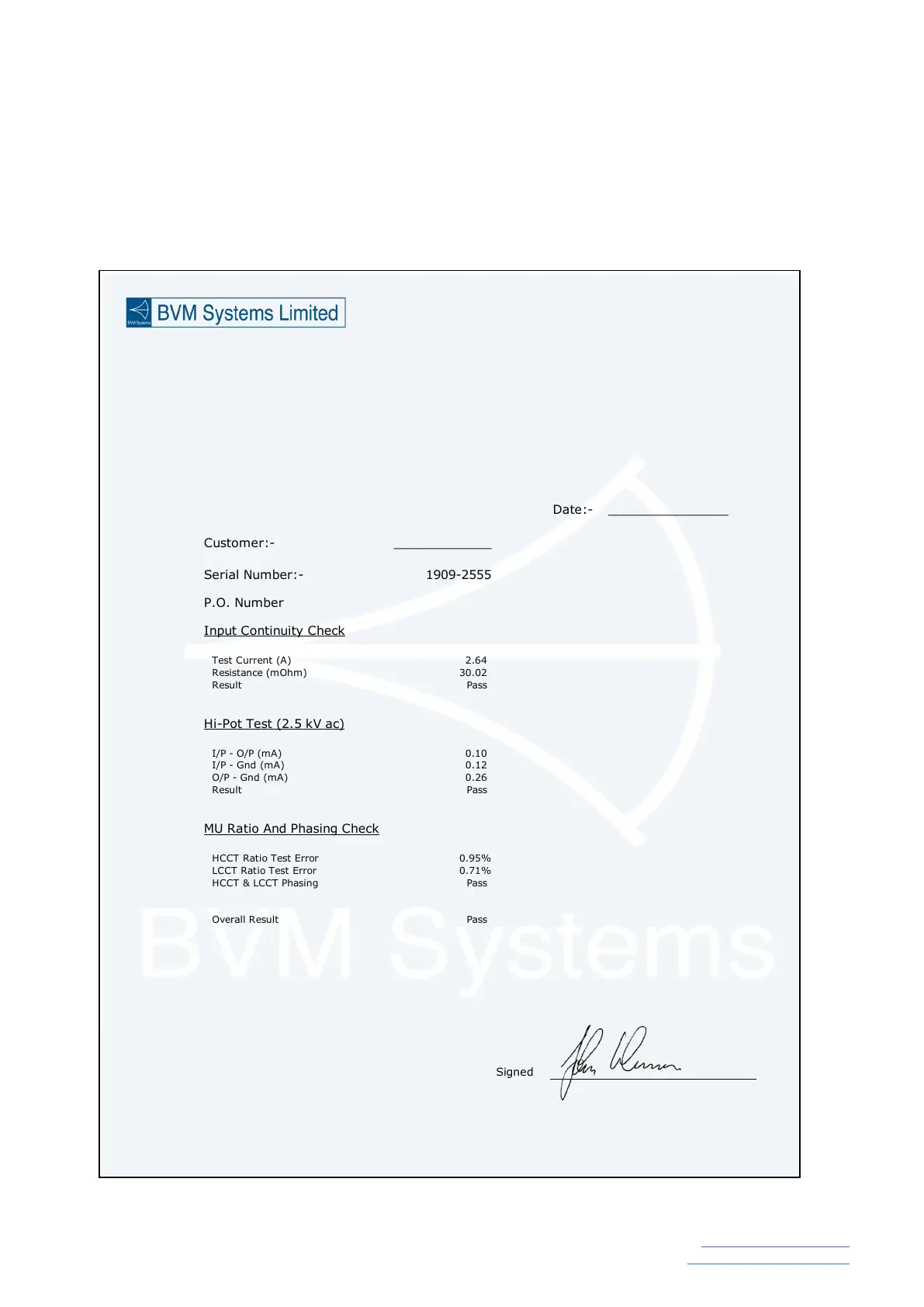

PQSensor™ - Sample Test Reports
Date:- ________________
Customer:- _____________
Serial Number:- 1909-2555
P.O. Number
Input Continuity Check
Test Current (A) 2.64
Resistance (mOhm) 30.02
Result Pass
Hi-Pot Test (2.5 kV ac)
I/P - O/P (mA) 0.10
I/P - Gnd (mA) 0.12
O/P - Gnd (mA) 0.26
Result Pass
MU Ratio And Phasing Check
HCCT Ratio Test Error
0.95%
LCCT Ratio Test Error
0.71%
HCCT & LCCT Phasing
Pass
Overall Result Pass
Signed
Measurement Unit Test Report
