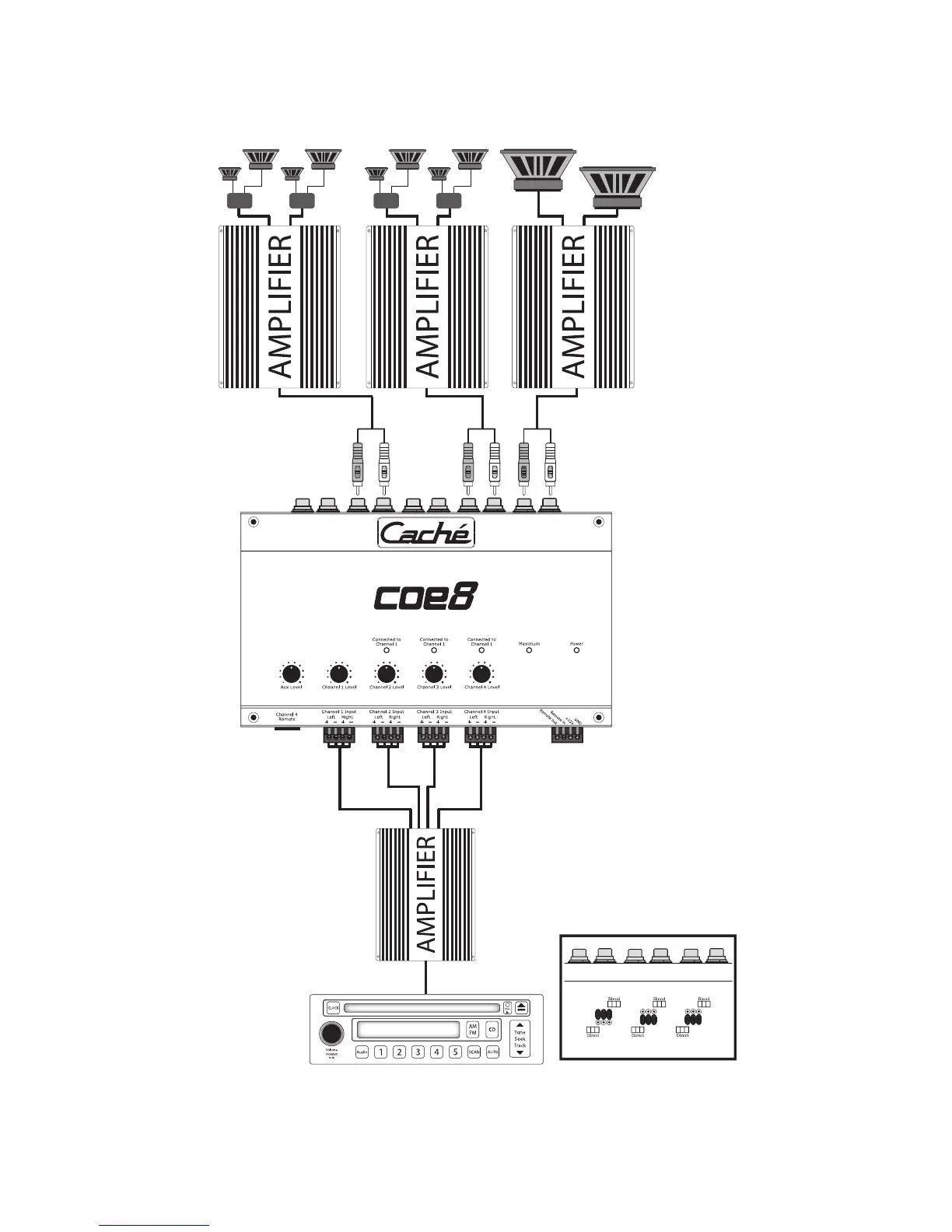

Example System #3
coe8 conguration for an active 2 way front, plus rear input
system using the blend mode on channel 2.
Jumper Position
Front Tweeter
Input
Blended Output
Front M id
Input
Subw oofer
Input
Rear
Full Range
Input
Factory Installed
Amplifier
Data Bus
Cable
Crossover
Front High/M id Speakers Rear High/M id Speakers Subw oofers
CHANNEL 2 IN BLEND MODE
CHANNEL 3 & 4 IN DIRECT MODE
