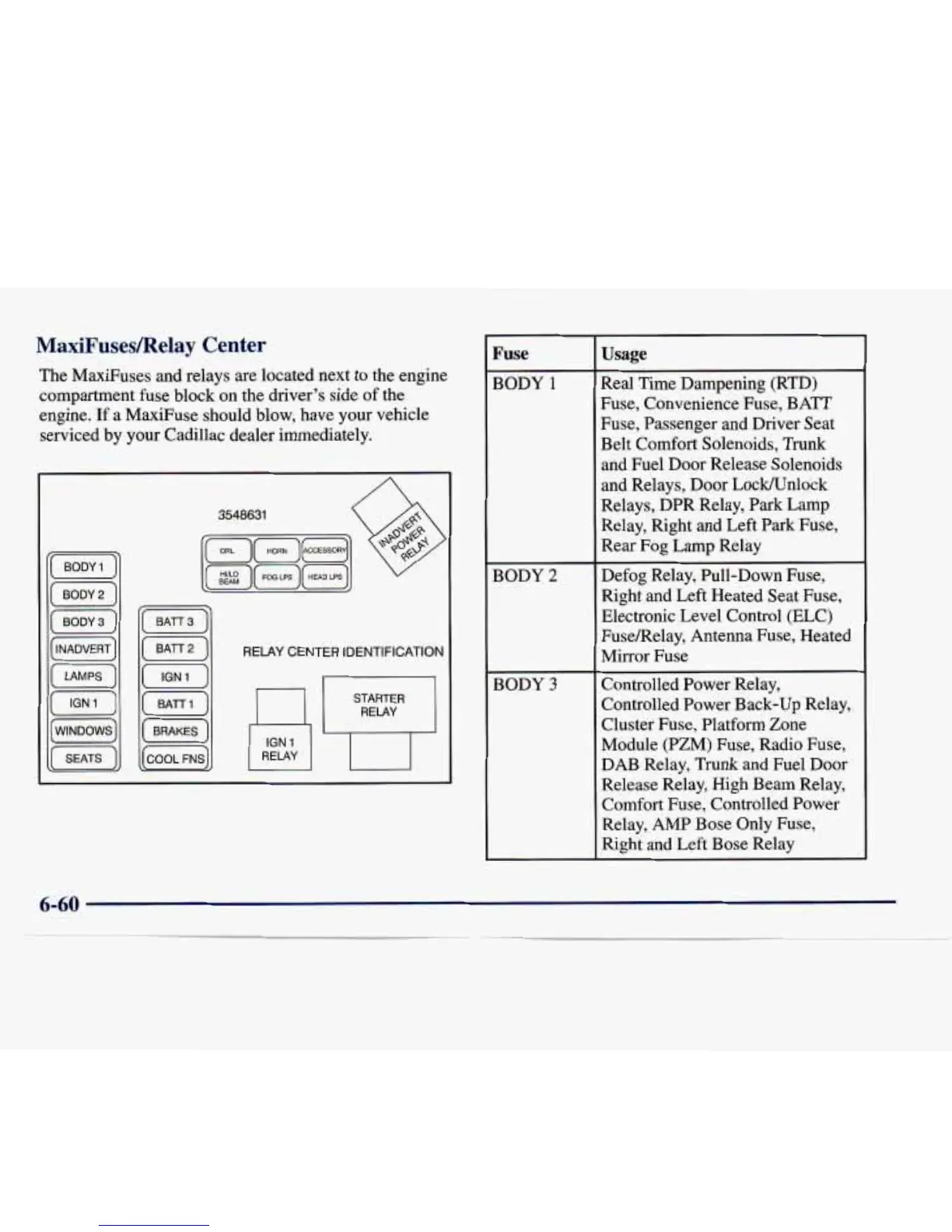

MaxiF'usesIRelay
Center
The MaxiFuses and relays are located next to the engine
compartment fuse block on the driver's side
of
the
engine.
If
a MaxiFuse should blow, have your vehicle
serviced by your Cadillac dealer immediately.
RELAY
CENTER
IDENTIFICATION
RELAY
Fuse
BODY
1
BODY
2
BODY
3
Usage
Real Time Dampening (RTD)
Fuse, Convenience Fuse, BATT
Fuse, Passenger and Driver Seat
Belt Comfort Solenoids, Trunk
and Fuel Door Release Solenoids
and Relays, Door Lock/Unlock
Relays, DPR Relay, Park Lamp
Relay, Right and Left Park Fuse,
Rear Fog Lamp Relay
Defog Relay, Pull-Down Fuse,
Right and Left Heated Seat Fuse,
Electronic Level Control (ELC)
FuseRelay, Antenna Fuse, Heated
Mirror Fuse
Controlled Power Relay,
Controlled Power Back-up Relay,
Cluster Fuse, Platform Zone
Module (PZM) Fuse, Radio Fuse,
DAB Relay, Trunk and Fuel Door
Release Relay, High Beam Relay,
Comfort Fuse, Controlled Power
Relay, AMP Bose Only Fuse,
Right and Left Bose Relay
To Next Page
