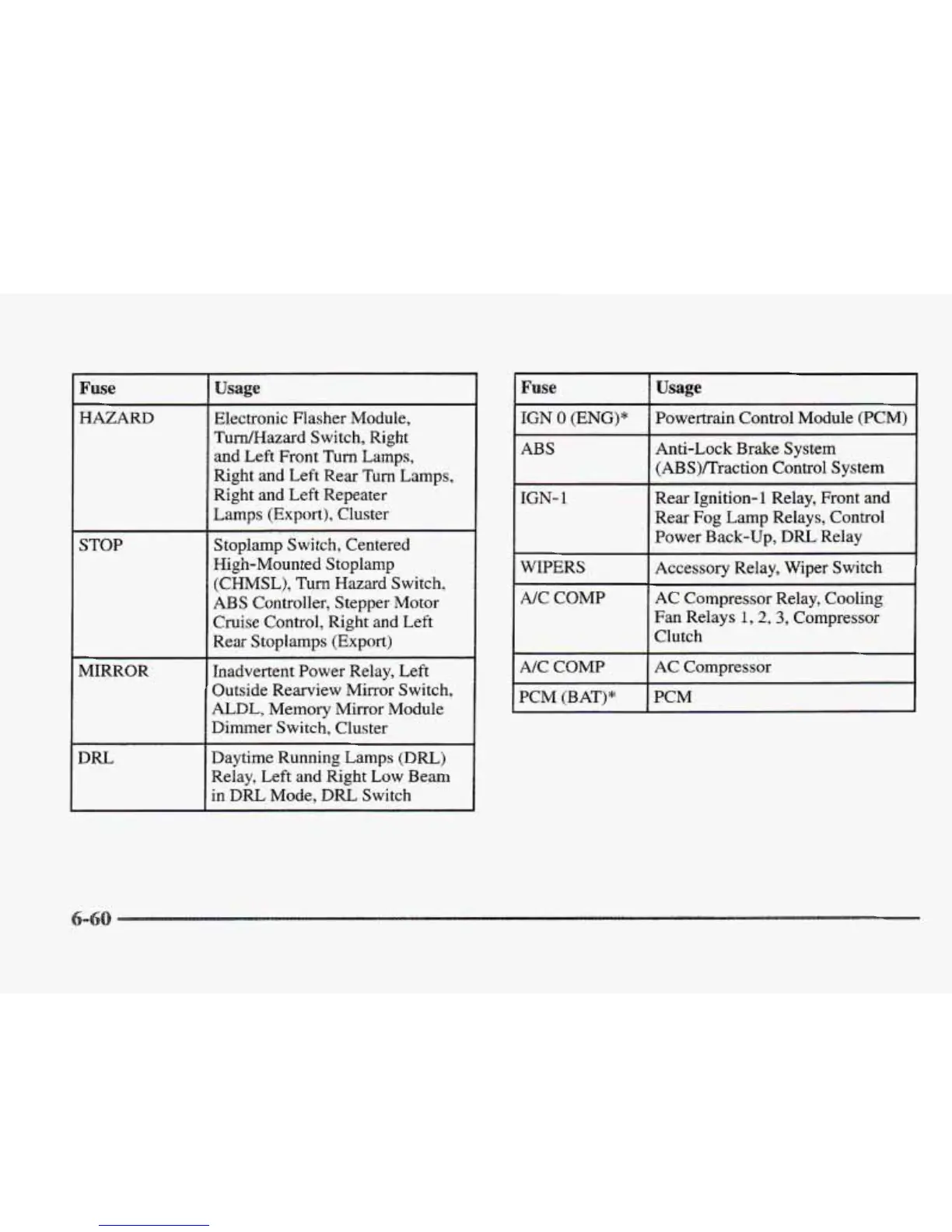

Fuse
HAZARD
STOP
MIRROR
DIU
Usage
Electronic Flasher Module,
TumEIazard Switch, Right
and Left Front Turn Lamps,
Right
and
Left
Rear
Turn
Lamps,
Right and Left Repeater
Lamps
(Export),
Cluster
Stoplarnp Switch, Centered
High-Mounted Stoplanlp
(CHMSL),
Turn
Hazard
Switch,
ABS
Controller, Stepper Motor
Cruise Control, Right and Left
Rear Stoplamps (Export)
Inadvertent Power Relay, Left
Outside Rearview Mirror Switch,
ALDL,
Memory Mirror Module
Dimmer Switch, Cluster
Daytime Running Lamps
(Dm)
Relay, Left and
Right
Low
Beam
in
DRL
Mode,
DIU
Switch
IGN
0
(ENG)*
ABS
IGN-
1
WIPERS
A/C
COMP
A/C COMP
PCM
(BAT)*
Usage
Powertrain Control Module (PCM)
Anti-Lock
Brake
System
(ABS)/Traction Control System
Rear Ignition-1 Relay, Front
and
Rear
Fog
Lamp Relays, Control
Power Back-up,
DRL
Relay
Accessory Relay, Wiper Switch
AC Compressor Relay, Cooling
Fan
Relays
1,2,
3,
Compressor
Clutch
AC Compressor
BCM
