ACCESS PANEL
RETAINER
TRUNK
SPARE
SPARE

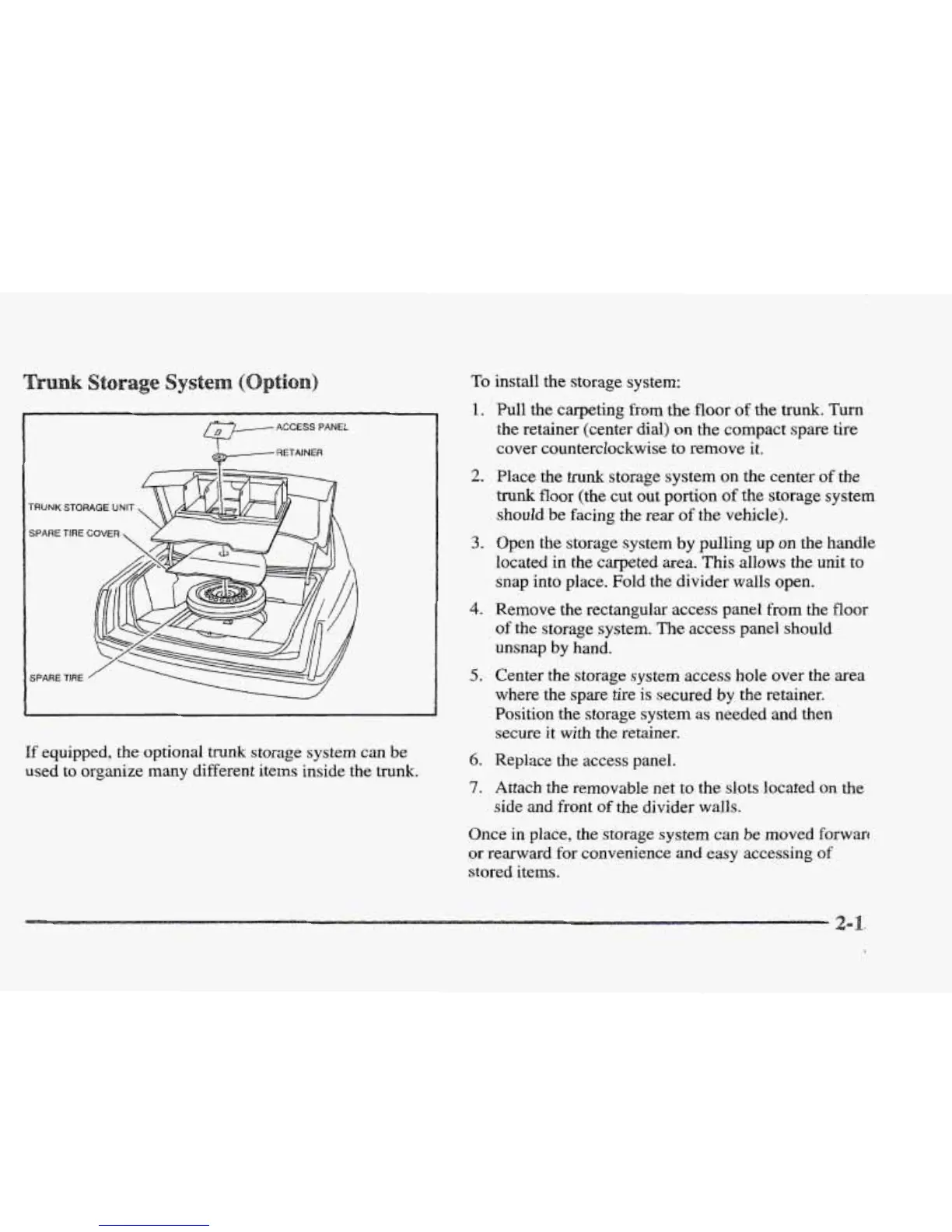

If
equipped,
the
optional trunk storage
system
can De
used to organize many different items inside the trunk.
To
install the storage system:
1.
2.
3.
4.
5.
6.
7.
Pull the carpeting
from
the floor
of
the
trunk.
Turn
the retainer (center dial)
on
the
compact spare tire
cover counterclockwise to remove it.
Place the trunk storage system
on
the center
of
the
trunk
floor
(the cut out portion
of
the storage system
should
be
facing the rear
of
the
vehicle).
Open the storage system
by
pulling
up
on
the handle
located in the carpeted area. This allows the
unit
to
snap
into
place. Fold the divider walls open.
Remove the rectangular access panel
from
the
floor
of
the storage system.
The
access
panel should
unsnap
by
hand.
Center the storage
system
access hole over the area
where the spare tire
is
secured
by
the retainer.
Position the storage system
as
needed and then
secure
it
with
the
retainer.
Replace the access panel.
Attach the removable net
to
the
slots located
on
the
side
and front
of
the divider
walls.
Once in place, the storage system can be moved forwarr
or
rearward for convenience
and
easy
accessing
of
stored items.
