1-16 2000 cadillac deville
ZERO
LINE
A
B
C
D
E
F
ALL LENGTHS MEASURED
FROM Ø LINE AT TOP
HINGE 19 MM HOLE
ALL MEASUREMENTS
HOLE CENTER TO CENTER
19 MM
GAGE
HOLE
Ø

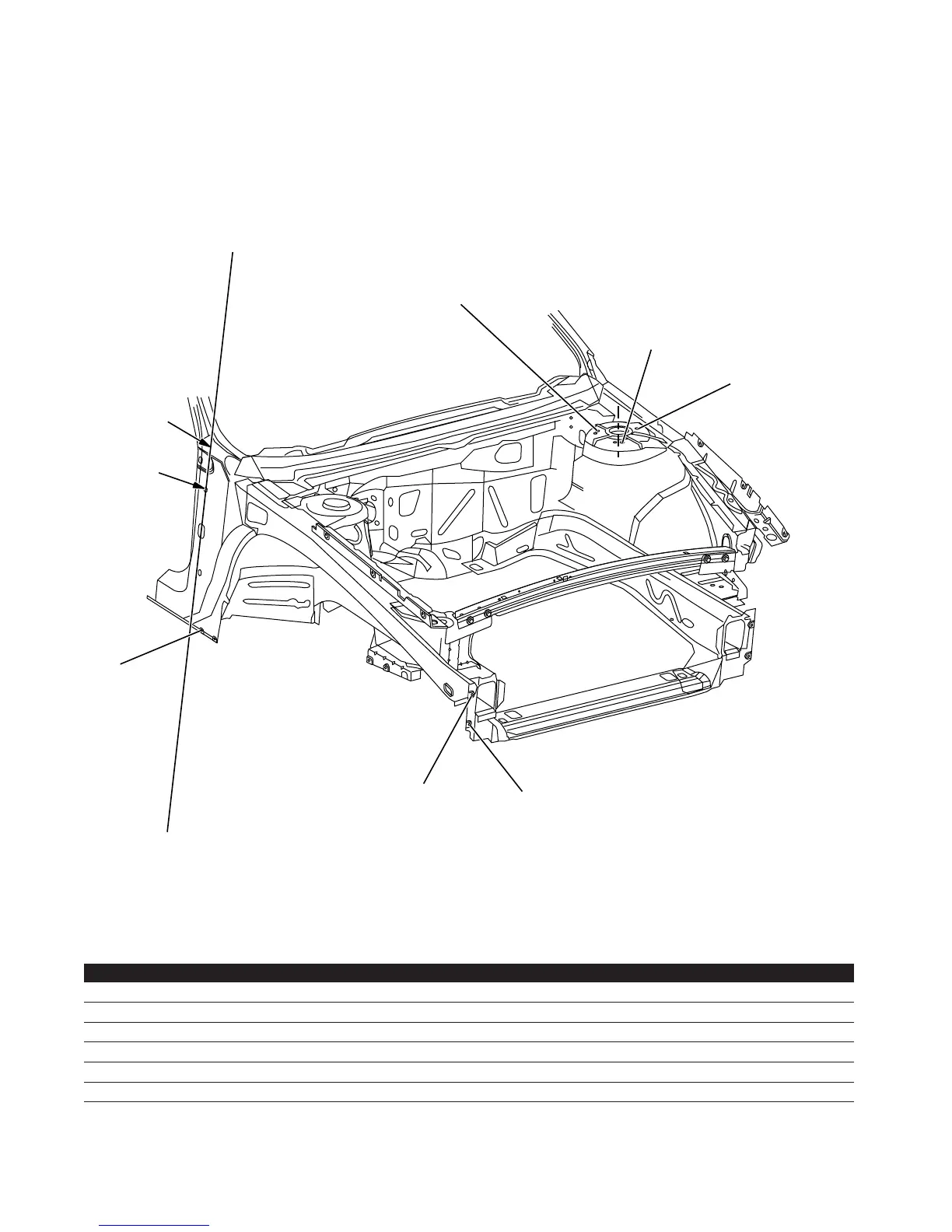

Engine Compartment Dimensions – 2000 Cadillac
DeVille
Description Location Length Width Height
Strut mount hole A 367 565 1014
Strut mount hole B 509 575 1029
Strut mount hole C 437 693 1027
Bumper mount hole D 1273 603 520
Bumper mount hole E 1273 605 640
Fender mount hole F 12 774 368
All dimensions are measured in millimeters, from a zero line, center line, and a common datum. All dimensions are symmetrical, unless otherwise specified.
