Installation Procedure
1. Install sleeves on vehicle at rocker and center
pillar areas using plug welds.
2. Replace hinge blocks and bolts.
3. Prepare mating surfaces.
IMPORTANT: Prior to refinishing, refer to the
publication GM4901M-D-2000 “GM
Approved Refinish Materials” for
recommended products. Do not combine
paint systems. Refer to paint manufacturer’s
recommendations.
4. Apply weld-through primer to mating
surfaces prior to assembly.
5. Align part and clamp in place. Check fit
(Fig. 1-7).
6. Spot blast plug weld areas.
7. Plug weld as necessary in original spot weld
locations and at backing plates.
8. Stitch weld at section joints, one inch on and
one inch off, as necessary, then go back and
complete the stitch weld. This will create a
solid joint with minimal heat distortion.
9. Dress welds and finish seams as necessary.
10. Refinish as necessary.

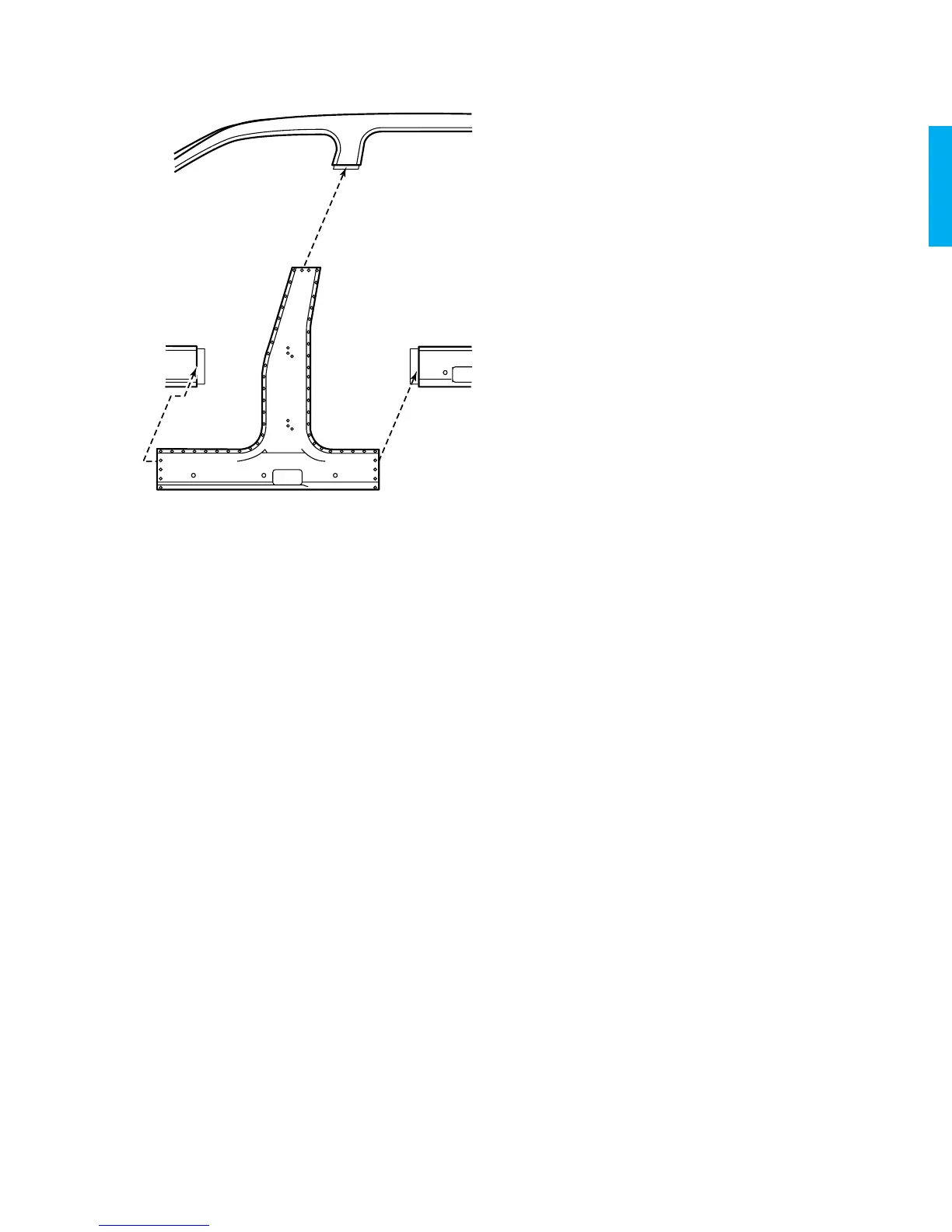

Fig.␣ 1-7 — Outer Center Pillar – Installation
2000 cadillac deville 1-5
