6-68

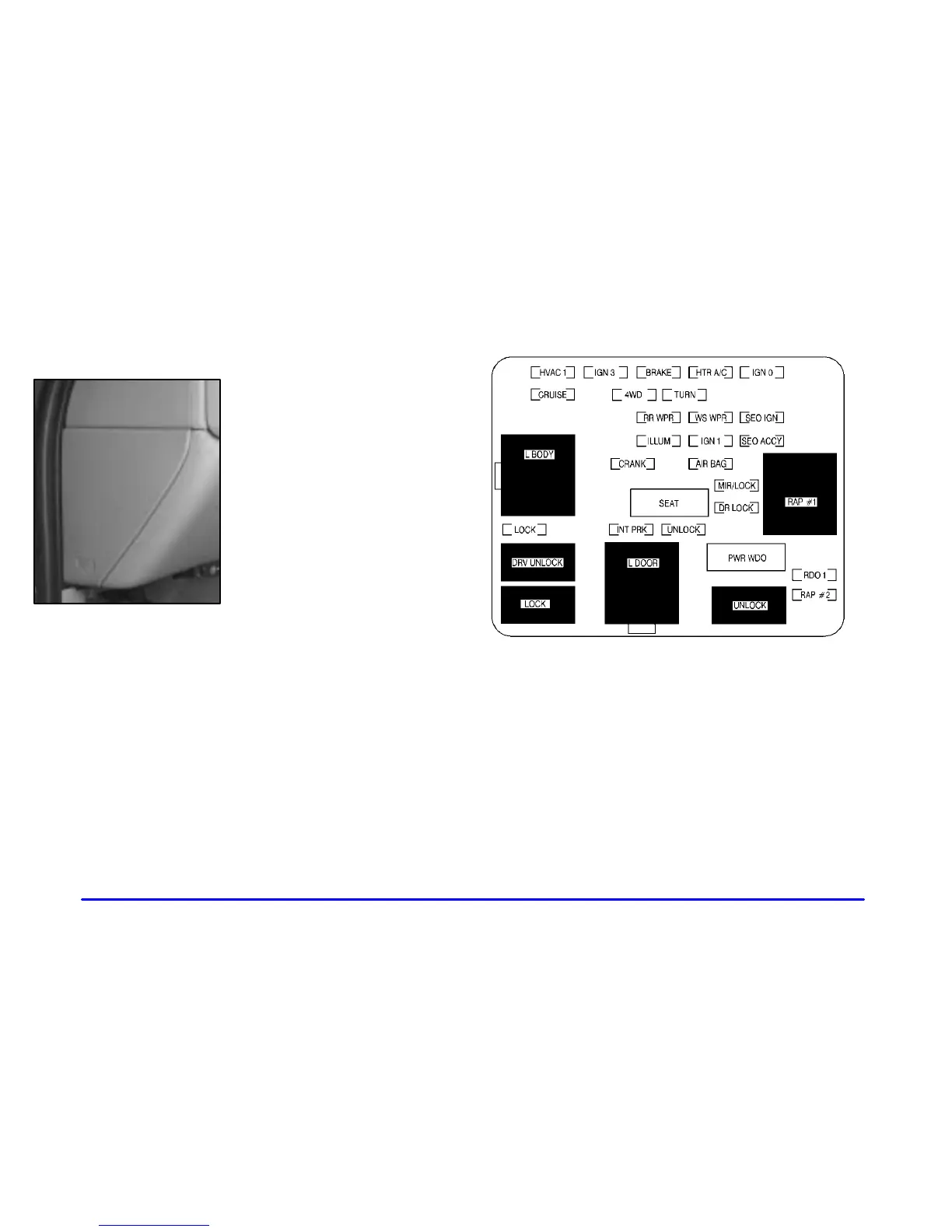

Instrument Panel Fuse Block
The fuse block access door
is located on the driver’s
side edge of the instrument
panel. Pull off the cover to
access the fuse block.
You can remove fuses with a fuse extractor which is
mounted to the fuse block access door. To remove fuses
if you don’t have a fuse extractor, hold the end of the
fuse between your thumb and index finger and pull
straight out.
You may have spare fuses located behind the fuse block
access door. These can be used to replace a bad fuse.
However, make sure it is of the correct amperage.
NAME Usage
L BODY Retained Accessory Power Relay
LOCK Power Door Locks
DRV UNLOCK Power Door Lock Relay
LOCK Power Door Lock Relay
