4-8 Storage

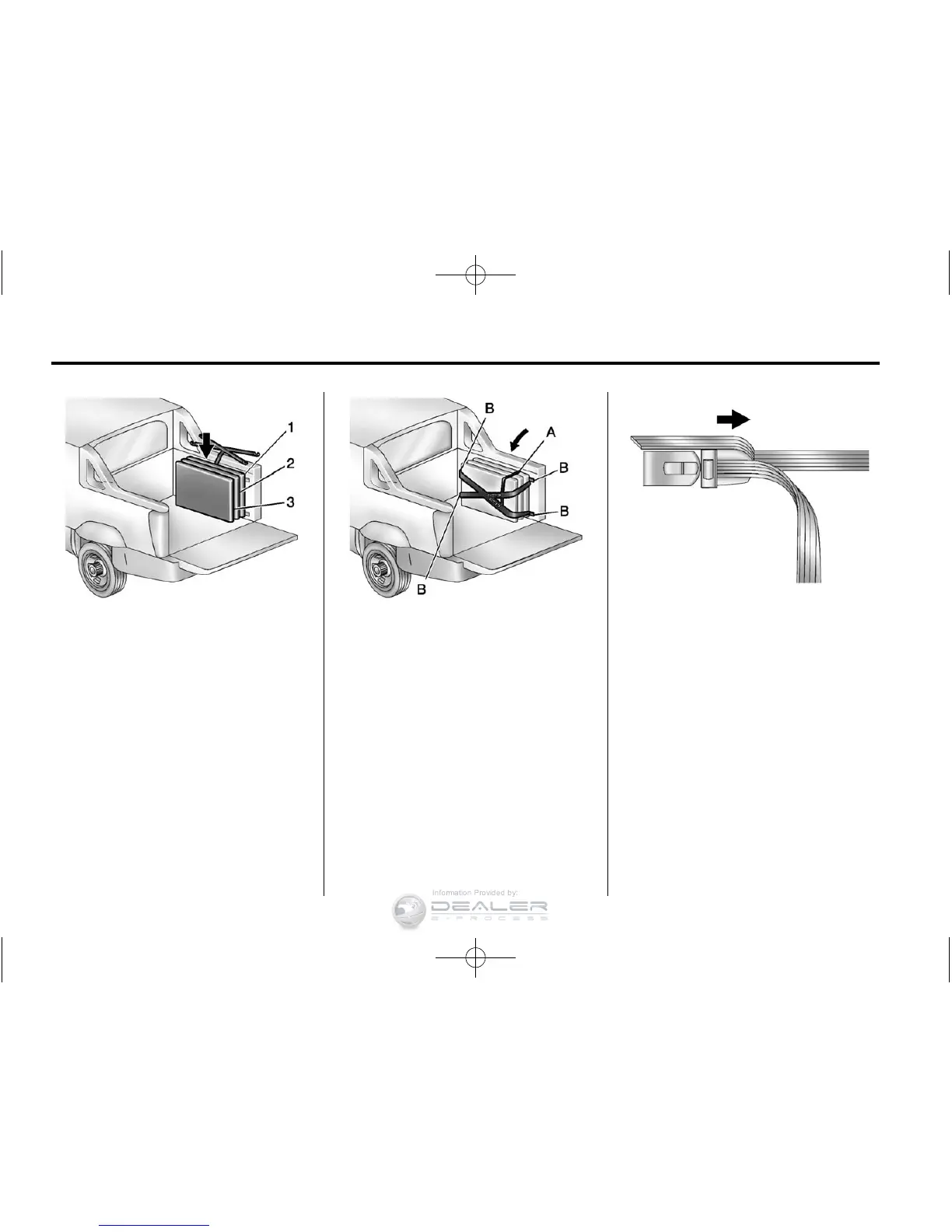

2. Starting with cargo panel 1, load
the cargo panel with the latches
facing up toward the side of the
cargo box.
Do the same for cargo panel 2
then panel 3. Make sure to store
panel 2 with the latches facing
down and panel 3 with latches
facing up toward the side of the
cargo box.
3. Place the primary straps over
the three cargo covers (A).
Fasten the four strap clips (B).
4. Tighten all straps by pulling on
the free end of each strap.
