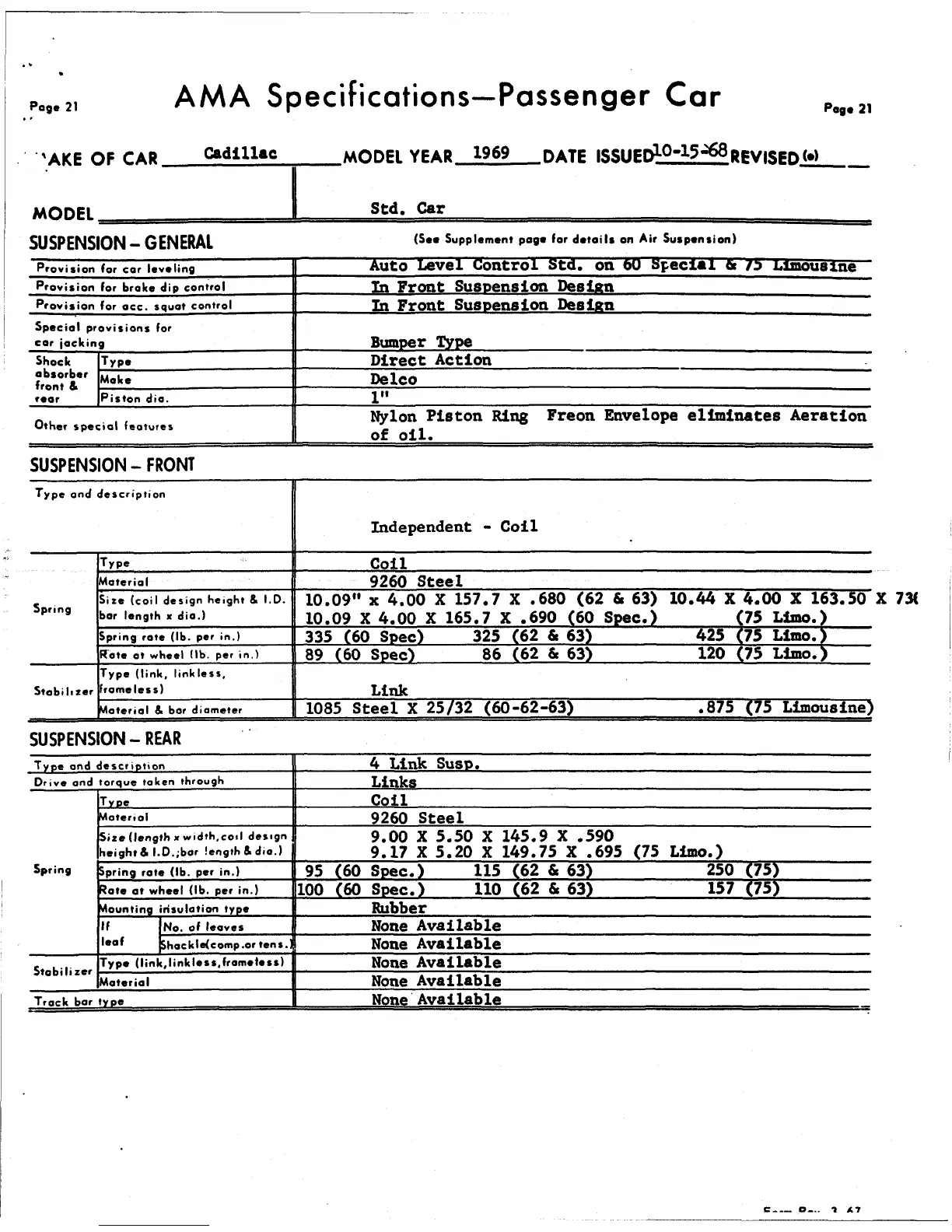

AMA Specifications—Passenger Car
Pa9#21
'AKE OF CAR Cadillac MODEL YEAR 1969
p
A
TE
ISSUEDJ^j^Q
REVISED
M
MODEL.
Std.
Car
SUSPENSION-GENERAL
(See Supplement page (or details on Air Suspension)
Provision (or ear leveling
Provision (or brake dip control
Provision (or ace. squat control
Special provisions (or
cor jacking
Shock
absorber
rear
Type
Make
Piston dia.
Other special features
1 Auto Level Control Std. on 6U special fit /:> Limousine
In Front Suspension Design
In Front Suspension Design
Bumper Type
Direct Action
Delco
1"
Nylon Piston Ring Freon Envelope eliminates Aeration
of oil.
SUSPENSION-FRONT
Type and description
Independent - Coil
Material
Spring
Size (coil design height & I.D.
bar length x dia.)
Type
Coll
9260 Steel
10.09"
x 4.00 X 157.7 X .680 (62 & 63) 10.44 X 4.00 X 163.50 X 73C
10.09 X 4.00 X 165.7 X .690 (60 Spec.) (75 Limo.)
Spring rate (lb. per in.)
335 (60 Spec) 325 (62 & 63)
425
Rote at wheel (lb. per in.)
89 (60 Spec)
86 (62 & 63) 120
(75 Limo.)"
(75 Limo.)
Stabilizer
Type (link, linkless,
Frameless)
Material & bor diameter
Link
1085 Steel X 25/32 (60-62-63)
.875 (75 Limousine)
SUSPENSION-REAR
Type
Drive
Spring
Stabil
ond description
and torque token through
zer
Type
Material
Size (length x width,coil design
height &
1.0.,bar
length &dio.)
Spring rote (lb. per in.)
Rate at wheel (lb. per in.)
Mounting insulation type
1(
leaf
No.
of leaves
ShackMcomp.or tens.]
4 Link Susp.
Links
Coil
9260 Steel
95
100
9.00 X 5.50 X 145.9 X .590
9.17 X 5.20 X 149.75 X .695
(60 Spec.) 115 (62 & 63)
(60 Spec.) 110 (62 & 63)
(75 Limo.)
250
157
<75)
(75)
Rubber
None Available
None Available
Type (link,linkless,fromeless) |
Material |
None Available
None Available
Track bor type
None Available
