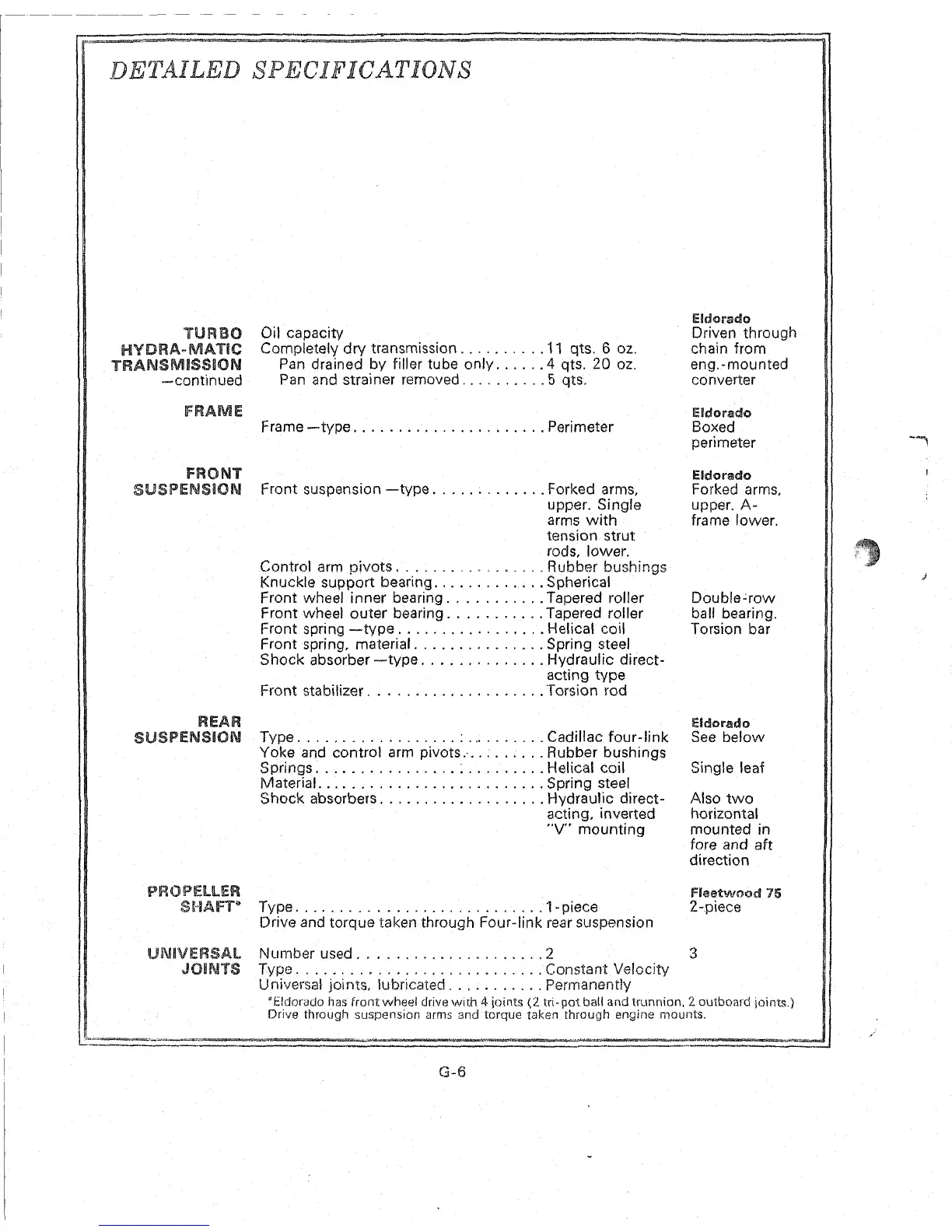

DETAILED SPECIFICATIONS
TURBO Oil capacity
IYDRA-MATIC Completely dry transmission 11 qts. 6 oz.
iANSMlSSION Pan drained by filler tube only 4 qts. 20 oz.
—continued Pan and strainer removed 5 qts.
FRAME
Frame—-type Perimeter
FRONT
SUSPENSION Front suspension —type Forked arms,
upper. Single
arms with
tension strut
rods,
lower.
Control arm pivots Rubber bushings
Knuckle support bearing . .Spherical
Front wheel inner bearing Tapered roller
Front wheel outer bearing Tapered roller
Front spring --type Helical coil
Front spring, material Spring steel
Shock absorber—type Hydraulic direct-
acting type
Front stabilizer Torsion rod
REAR
SUSPENSION Type : Cadillac four-link
Yoke and control arm pivots.......... Rubber bushings
Springs ; Helical coil
Material Spring steel
Shock absorbers Hydraulic direct-
acting,
inverted
"V" mounting
Eldorado
Driven through
chain from
eng.
-mounted
converter
Eldorado
Boxed
perimeter
Eldorado
Forked arms,
upper. A-
frame lower.
Double-row
ball bearing.
Torsion bar
Eldorado
See below
Single leaf
Also two
horizontal
mounted in
fore and aft
direction
PROPELLER
UNIVERSAL
JOINTS
Fleetwood 75
Type
1
-
piece 2-piece
Drive and torque taken through Four-link rear suspension
Number used 2 3
Type Constant Velocity
Universal joints, lubricated Permanently
"Eldorado has front wheel drive with 4 joints <2 tri- pot ball and trunnion, 2 outboard joints.)
Drive through suspension arms and torque taken through engine mounts.
-*-*(
