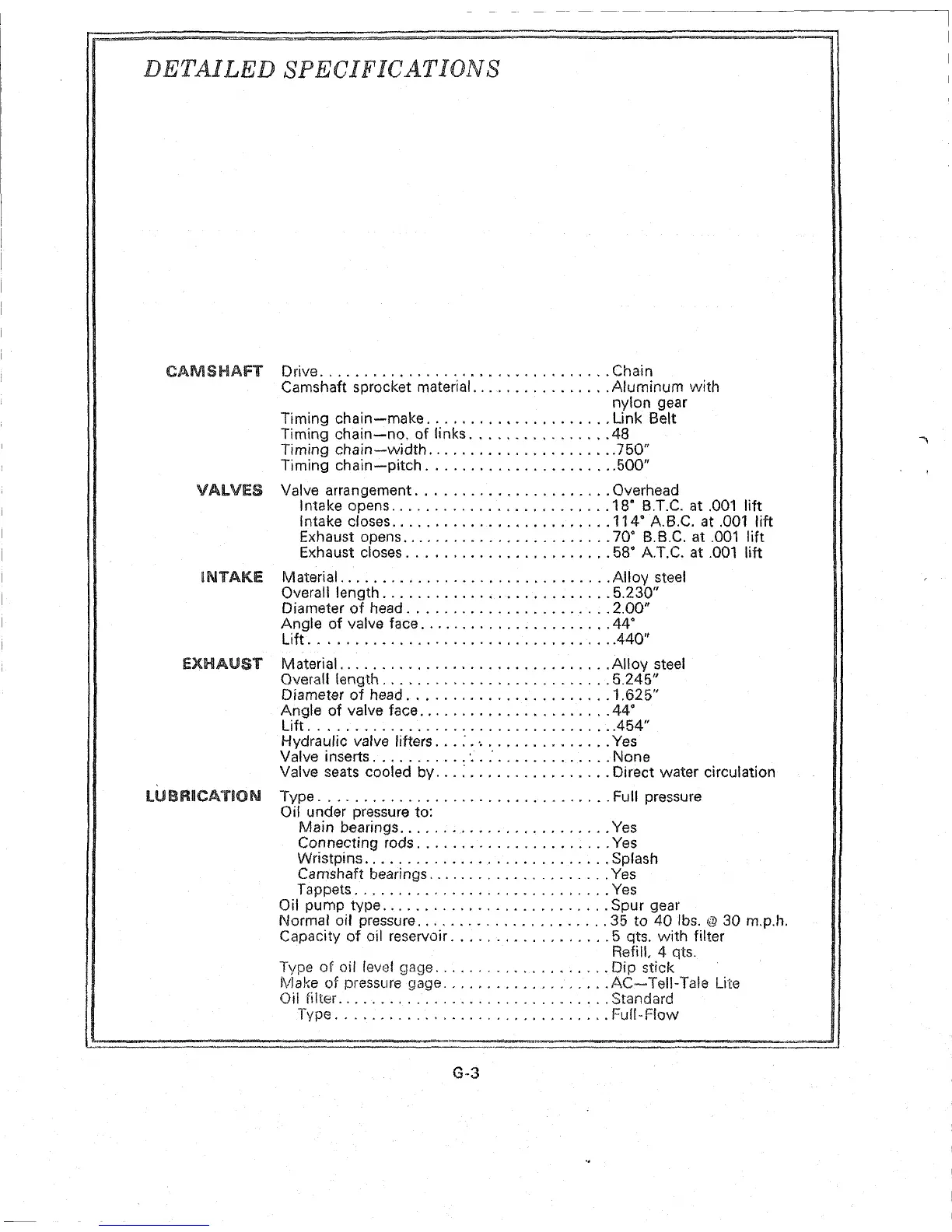

DETAILED SPECIFICATIONS
CAMSHAFT Drive Chain
Camshaft sprocket material. Aluminum with
nylon gear
Timing chain—make Link Belt
Timing chain—no. of links 48
Timing chain—width 750"
Timing chain—pitch 500"
VALVES Valve arrangement Overhead
Intake opens 18° B.T.C. at .001 lift
intake closes 114" A.B.C. at .001 lift
Exhaust opens 70" B.B.C. at .001 lift
Exhaust closes 58° A.T.C. at .001 lift
•
IWTAKE Material Alloy steel
Overall length 5.230"
Diameter of head 2.00"
Angle of valve face 44°
Lift 440"
EXHAUST Material Alloy steel
Overall length 5.245"
Diameter of head 1.625"
Angle of valve face 44"
Lift 454"
Hydraulic valve lifters. ...'.•. Yes
Valve inserts '.. .' None
Valve seats cooled by. Direct water circulation
LUBRICATION Type Full pressure
Oil under pressure to:
Main bearings Yes
Connecting rods Yes
Wristpins Splash
Camshaft bearings Yes
Tappets Yes
Oil pump type Spur gear
Normal oil pressure 35 to 40 lbs. @ 30 rn.p.h.
Capacity of oil reservoir 5 qts. with filter
Refill, 4 qts.
Type of oil (eve! gage Dip stick
Make of pressure gage .AC—Tell-Tale Lite
Oil filter Standard
Type Fu!!-F!ow
