5-22
To remove the tools, do the following:
1. Open the top door on the passenger’s side Top
-Box
Storage unit. Use the ignition/door key to unlock it
if it is locked. See “Top-Box” in the Index for more
information on the Top
-Box Storage unit.

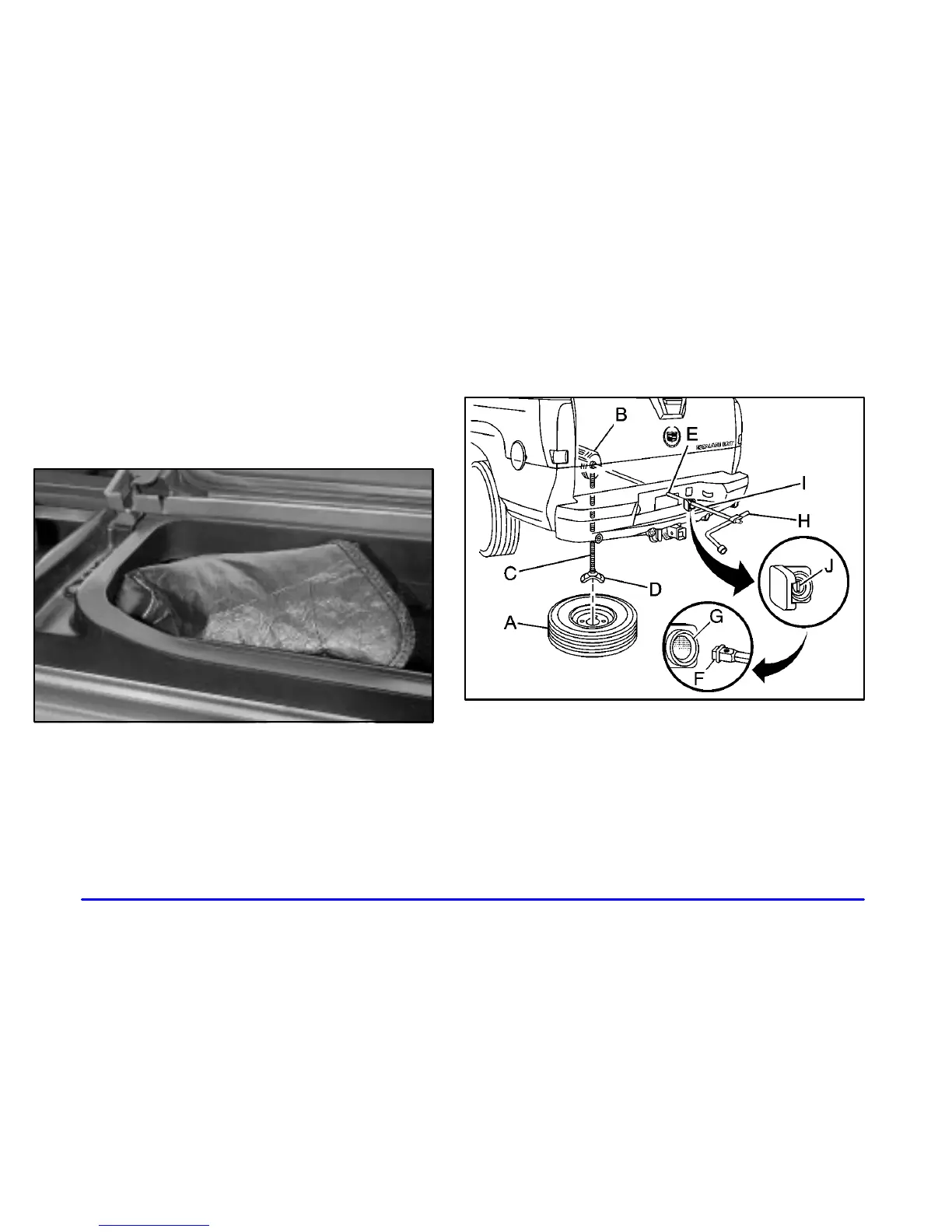

Top-Box Storage Unit (Passenger Side)
2. Remove the black pouch from the Top
-Box.
You now have all of the tools you will need to lower
the spare tire and change a flat.
You’ll use the jack handle extensions and the wheel
wrench to remove the underbody
-mounted spare tire.
A. Spare Tire
B. Hoist Assembly
C. Hoist Cable
D. Tire Retainer
E. Hoist Shaft
F. Hoist End of
Extension Tool
G. Hoist Shaft
Access Hole
H. Wheel Wrench
I. Jack Handle
Extensions
J. Hoist Lock
