6-46

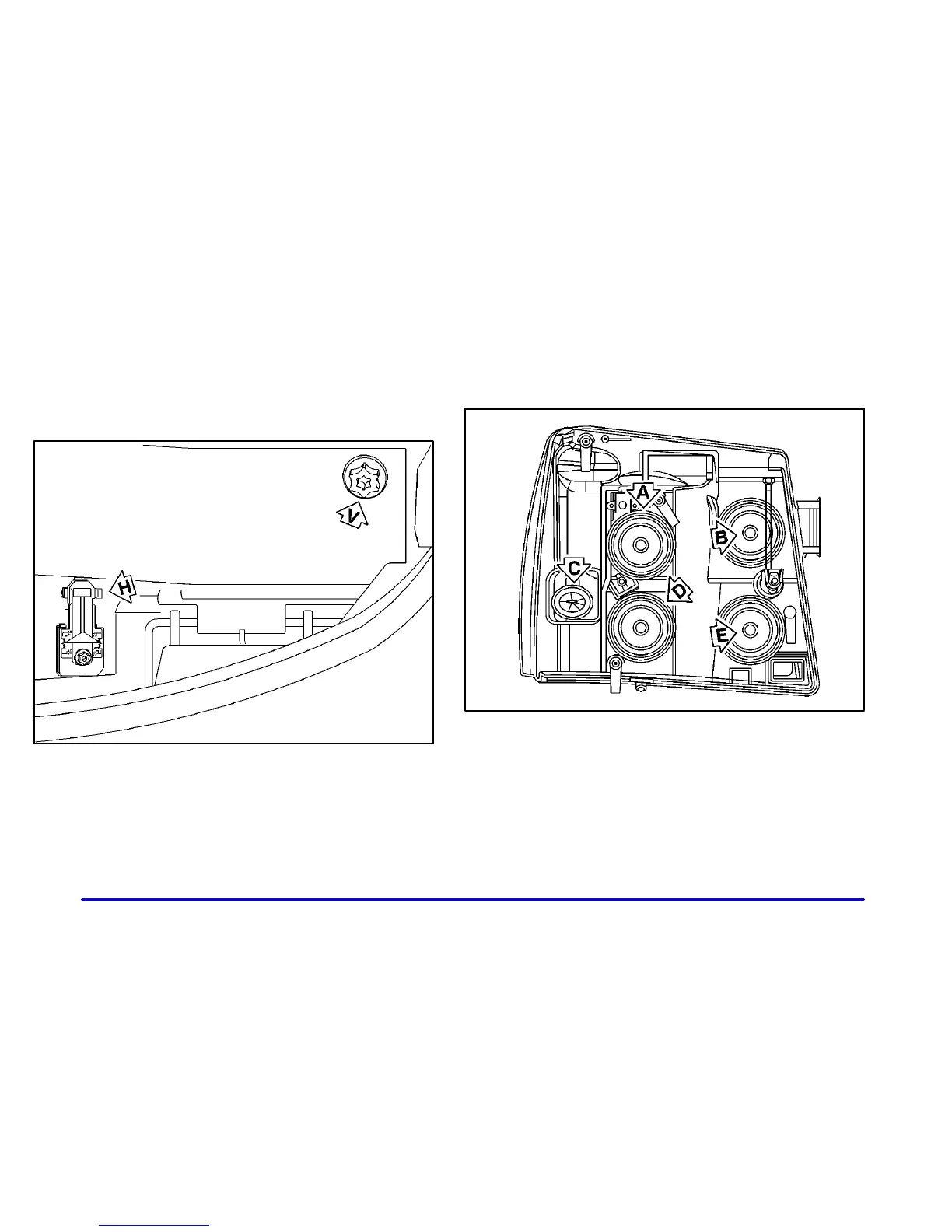

5. Turn the vertical aiming screw (V) until the
headlamp beam is aimed to the horizontal tape line.
The top edge of the cut-off should be positioned at
the bottom edge of the horizontal tape line.
6. Repeat steps 4 and 5 for the opposite headlamp.
Front Turn Signal, Sidemarker and
Daytime Running Lamps
A. Low-Beam Headlamp
B. Daytime Running Lamp
C. Sidemarker Lamp
D. High
-Beam Headlamp
E. Front Turn Signal Lamp
To Next Page
